Scatter Chart

On this page

  • Scatter Chart Encoding Channels
  • Use Cases
  • Customization Options
  • Examples
  • Limitations

Scatter charts plot data with individual data points placed along the X and Y axes. Optionally, the data point representations may use shapes and colors to display additional data dimensions.

Scatter charts provide the following encoding channels:

Encoding Channel
Description
X / Y Axis
The X and Y axis encoding channels accept numerical and date fields and display the range of values from the field along the corresponding axis.
Size

(Optional) An aggregation encoding channel that changes the size of the data point markers, with larger sizes indicating larger aggregated values.

Tip
See also:
Color
(Optional) A category encoding channel that changes the color of the data point markers based on the value of the selected field. MongoDB Charts lists the colors used in a key to the right of the chart.
Shape
(Optional) A category encoding channel that changes the shape of the data point markers based on the value of the selected field. MongoDB Charts lists the shapes used in a key to the right of the chart.
Tooltip Detail

(Optional) A category encoding channel that adds the value of the selected field to each data point's tooltip. To view a data point tooltip, hover over that point in the chart.

In addition to the Tooltip Detail field, the tooltip also shows other fields used to construct the chart.

Scatter charts are useful for representing numerical data and showing clearly how data points cluster together in certain areas. The Size, Color, and Shape encoding channels allow you to reveal additional trends for data dimensions with low cardinality.

Tip

A chart with many different colors or shapes may result in a cluttered visualization which is difficult to read. You can limit the number of categories in your chart by binning or limiting your data.

Scatter charts show an individual marker for each data point, so they work better with smaller result sets. Outliers and extreme data points are easy to identify.

Consider using a scatter chart to display:

  • Temperature data for selected cities
  • Volume of sales data for selected retail outlets
  • Population density figures across several countries

The following customization options are specific to scatter charts. To see all available customization options, see Customize Charts.

The Opacity customization option, measured as a percentage, modifies the transparency of the data point fill. This setting defaults to 0%, which renders the data point fill as completely transparent.

The Stroke Thickness customization option, measured in pixels, modifies the thickness of data point outlines. This setting defaults to 2.

Adjust the size of the scatter marks. This option behaves differently based on whether you have a field mapped to the Size encoding channel.

  • If you do not have a field mapped to Size, the Mark Size setting changes the size of the marks linearly based on the chosen value.
  • If you have a field mapped to Size, the Mark Size setting changes the size of the largest mark, and also controls the difference between the smallest and largest marks.

Smart labels for dates are axis markers grouped by units of time to reduce repetition of information. They are generated automatically based on the range of the chart when a date type field is encoded on an X or Y value axis.

Smart labels are enabled by default when dates fields are encoded on value axes on supported chart types. To toggle smart labels on and off:

  1. Click the Customize tab above the encoding channels in the Chart Builder.
  2. Expand the Fields section.
  3. Select the desired field from the dropdown menu.
  4. If the Use Smart Labels on Axis toggle swich is set to Off, toggle it to On.

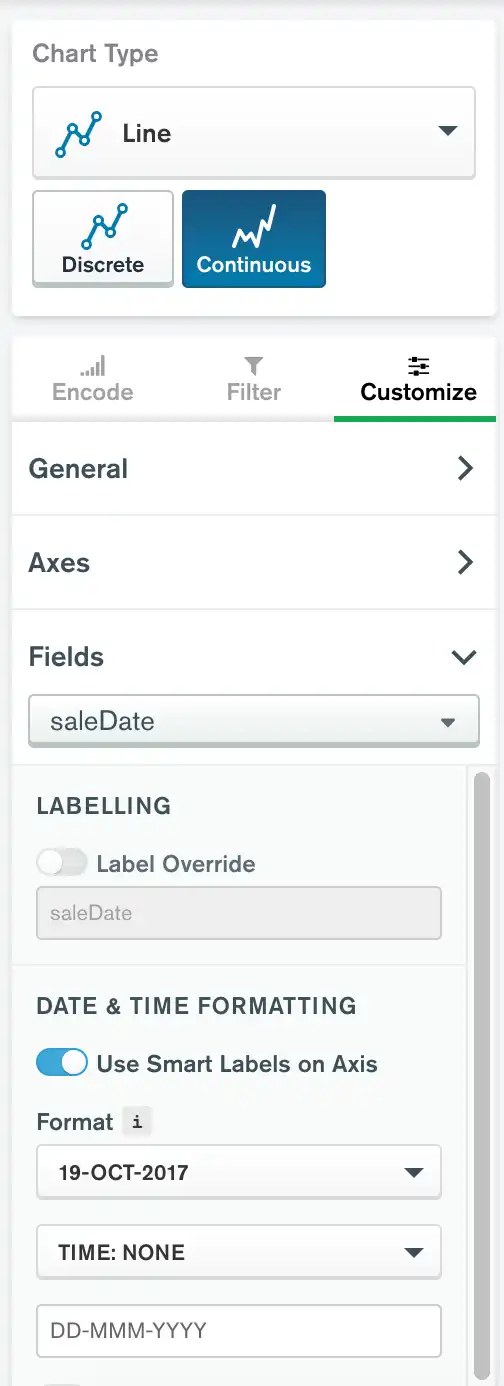

Smart label toggle switch
Note

When smart labels are enabled, date and time formatting options remain available. Any formatting options you apply are visible in the chart's tooltips.

You can add a trendline to a continuous line/area or scatter chart. To enable the trendline feature:

  1. Open the Customize pane for your chart.
  2. Scroll down to the Chart Elements section.
  3. Toggle the Trendline switch.
  4. Select a series from the Series dropdown menu.
  5. Select a trendline type from the Type dropdown menu.

Trendlines span the entire length of a chart's X axis, including any additional space added as a result of a min/max axis customization.

The following trendline types are available:

  • Linear (default)
  • Logarithmic
  • Quadratic
  • Cubic
  • Exponential
  • Power

The trendline option is not available if:

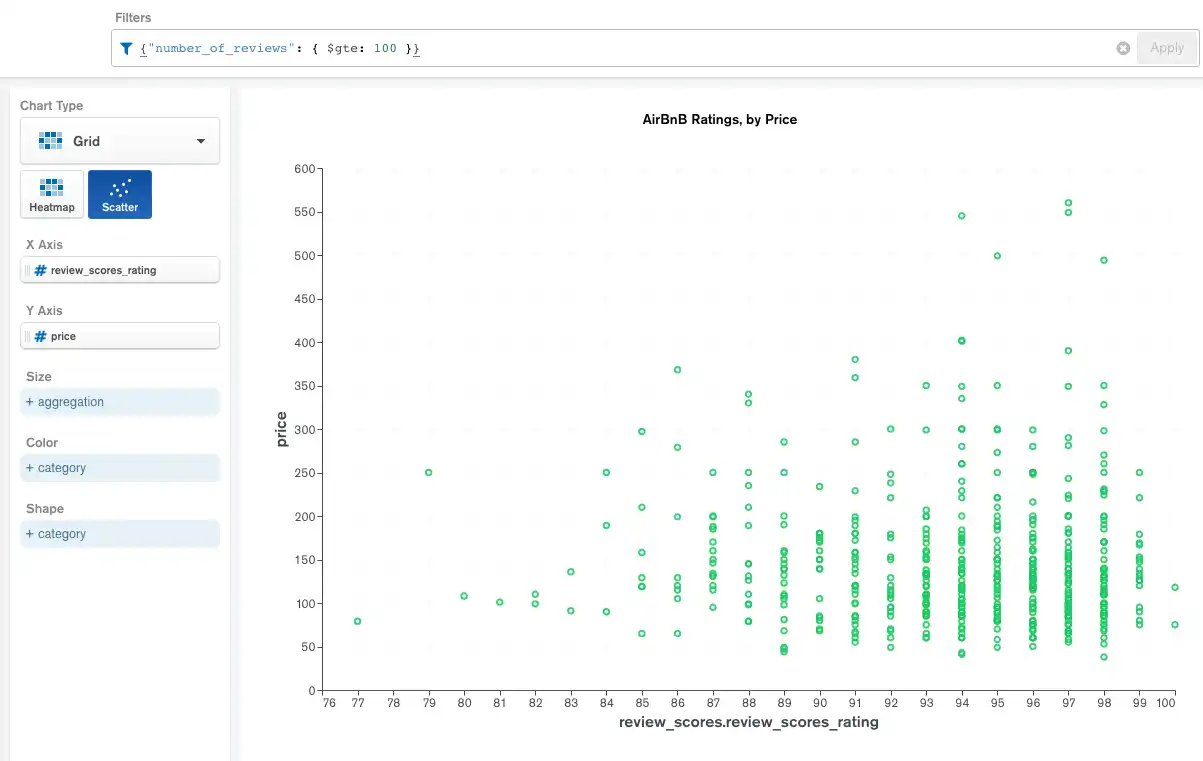

The following scatter chart uses a database of information about AirBnB rental properties in Sydney, Australia. The X axis shows the review ratings given to individual properties, with the price per night displayed along the Y axis. The query filter restricts the result set to properties with at least 100 reviews.

The chart shows that lower-priced properties have a wider range of review scores, while higher-priced properties have a smaller score range with generally higher scores.

Scatter chart example

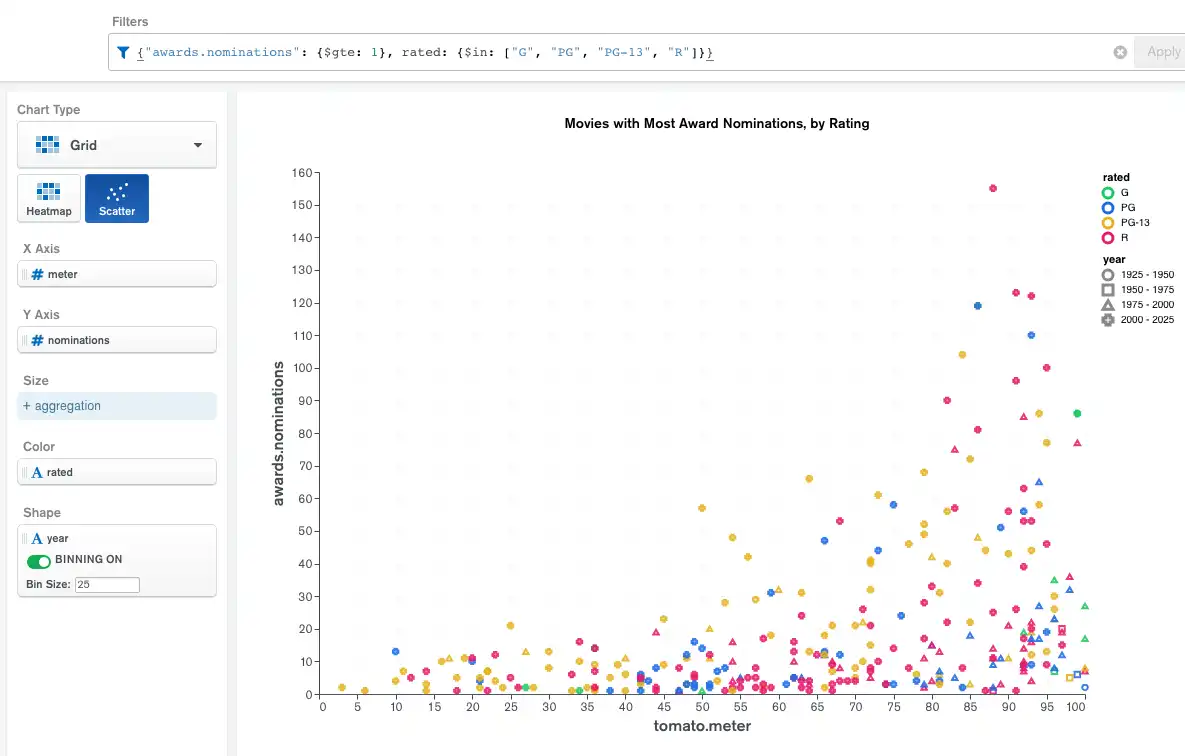

The following more complex scatter chart uses a database with movie data compiled from IMDb and Rotten Tomatoes. The chart shows the TomatoMeter rating (ranging from 0 to 100) of movies with at least one award nomination. Each data point marker represents one movie. The X axis shows the movie's TomatoMeter rating and the Y axis shows the number of award nominations the movie received.

The query filter restricts the result set to exclude marginal data points.

The chart uses the Color and Shape encoding channels to shed further light on the types of movies which receive the most award nominations. The color of each data point shows the MPAA (Motion Picture Association of America) rating the movie received. The chart uses the Shape encoding channel to indicate the year in which the movie was released, and bins the data to place each movie into a time range, with each bin covering 25 years. Without the bins, there would be a different shape for every year, which would make the chart too noisy to read.

Scatter chart example

The maximum query response size for a scatter chart is 50000 documents.
