Create a Multi-Series Chart

On this page

  • Map Multiple Fields to a Single Axis
  • Series Field
  • count by value Aggregation Option

MongoDB Charts supports building multi-series charts, which split your chart data into groups, or series, to compare additional fields within your schema. There are two ways to create multi-series charts:

MongoDB Charts allows you to map multiple Aggregation or Value fields to a single chart property (such as the X Axis or Y Axis). This allows you to compare additional fields by creating new series based on the encoding channels added.

After dragging a field to an aggregation or value encoding channel, an additional optional encoding channel of the same type appears below the one which was just added, allowing you to add additional series to your visualization. This process repeats with each channel you add, so you can map as many fields as desired to your chart.


The following multi-series column chart shows average movie ratings by genre from two different sources: IMDB and Rotten Tomatoes:

Movie Ratings Multiseries Chart

There are two aggregation encoding channels on the chart's Y Axis, one for each of the site's rating fields. By selecting the mean aggregation option, the chart aggregates these two fields using the $avg operator to provide a comparison of the average of two fields in the same column.


Use multiple field mappings to create a multi-series chart when the values being compared in the visualization come from two or more separate fields in the schema.

In the example above, there is one series for Rotten Tomato ratings and one series for IMDB ratings. Since these are separate fields within the schema, adding multiple aggregation encoding channels to map the data is the best choice to compare the fields.


See also:

If you omit the Category field, you can create a single-series chart based on your selected aggregated fields. To learn more, see Create a Single-Series Chart with Multiple Aggregations.

If you map multiple Aggregation or Value fields to the Y axis, you can plot one set of values on a secondary Y axis.

You can also create multi-series charts by using the Series field in the chart builder. The Series field differs from aggregation encoding channels because it instead utilizes a Category encoding channel instead of a Value or Aggregation channel. When creating a series using the Category encoding channel, each unique value from the data field becomes a series in the visualization.

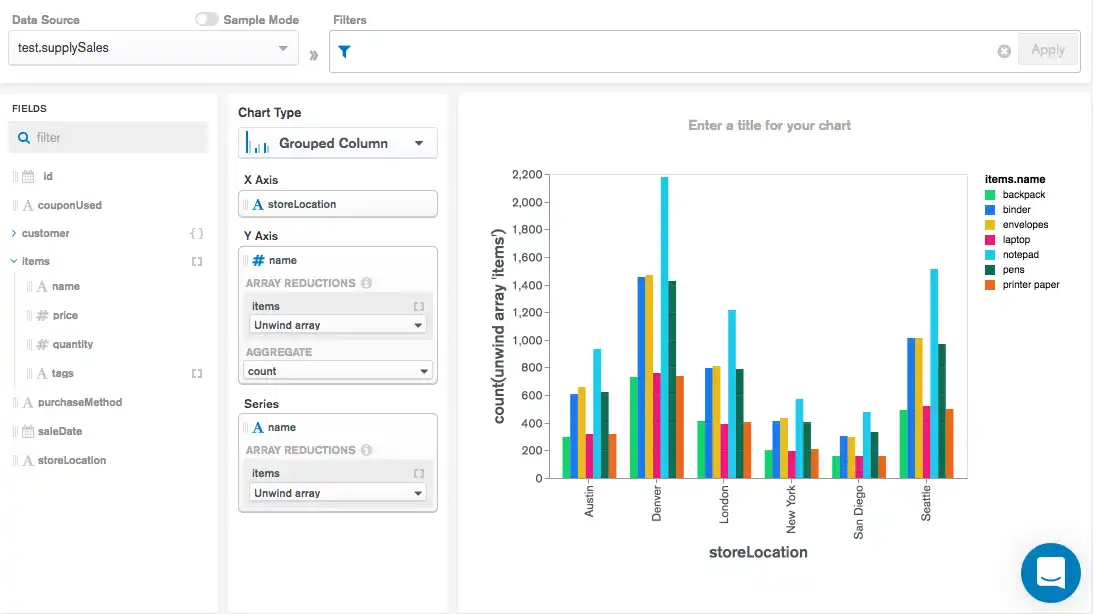

The following multi-series column chart shows order data from an office supply store, showing the most common items sold by store location:

Supply Store Series Encoding Channel Example

By using the in the Series encoding channel, a series within each location group is added for each item name.


The Series field is useful when you are grouping data based on a discrete list of items. This approach should be used when the values for all series are stored in a single field, with a separate field used to establish the discrete categories.

When you drag a field onto an aggregation channel, you can select the count by value option to create a multi-series chart based on the values contained in the field. A series is automatically created for each unique value from the field, with the chart value representing the number of occurrences.

Your chart can display multiple count by value fields with additional aggregations, as long as there is no field mapped to the category axis.


If any field in the X or Y axis channel has the count by value aggregation selected, the Series channel is disabled, and any field previously mapped to that channel is removed.

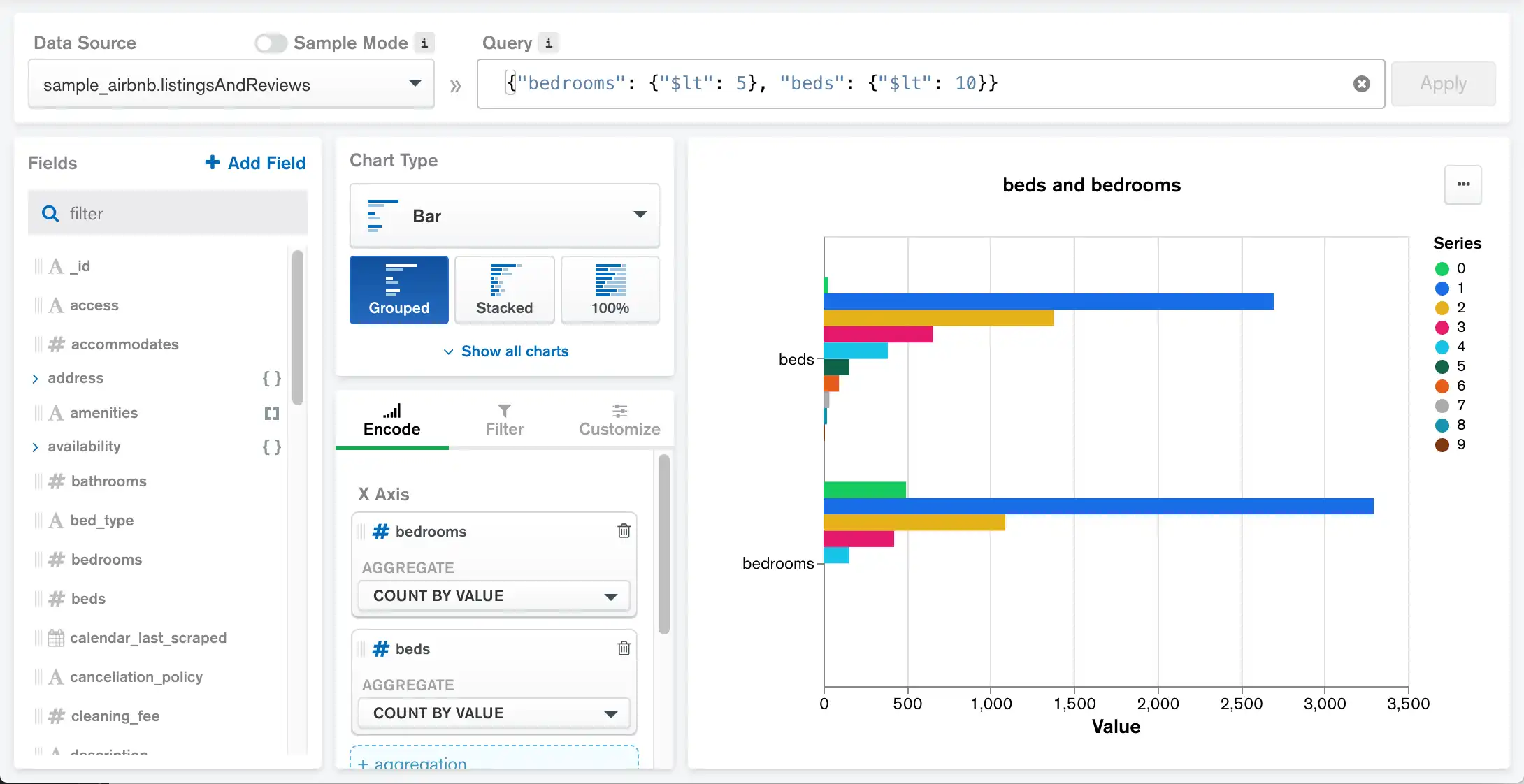

The following multi-series bar chart uses the sample_airbnb database. It groups listings by the number of beds and the number of bedrooms they have, showing the total number of listings for each value.

Count by value multi-series chart example

You can also create a multi-series chart with a count by value aggregation channel and a category axis channel.


The following multi-series stacked column chart uses the sample_airbnb database. It shows all the different suburbs of Turkey with the number of each distinct type of property located there.

Count by value multi-series chart example

The address.suburb field populates the X axis, while the stacked columns represent all the different property types and the total number of each.
