While editing a chart in the Chart Builder, you can view underlying data from the Ellipses (...) dropdown menu. Access to underlying data is intended to help you build meaningful charts as well as export that data for use with third-party tools.

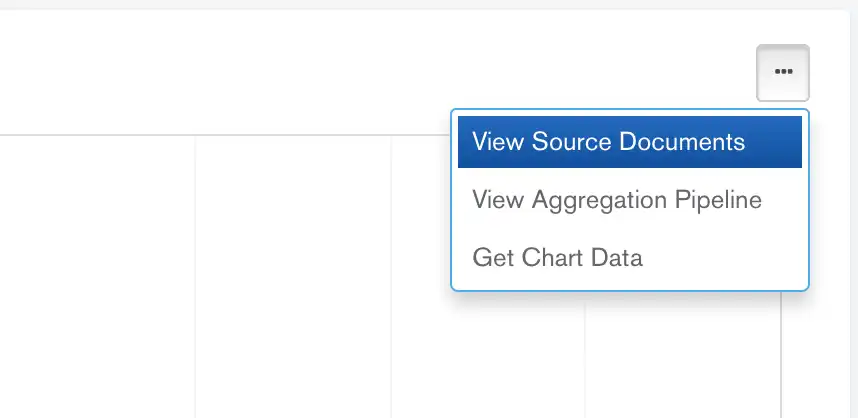

The ellipse menu is in the top-right corner of the charts editor.
click to enlarge

Once you have selected a data source for your chart, you can view up to 20 sample documents from that data source by clicking View sample documents from the menu.


If you want to explore your data source beyond 20 sample documents, you can use Compass or the Atlas Data Explorer.

The sample documents are intended for reference to help you build a chart. The documents do not reflect any groupings or projections applied to an existing chart (i.e. any Encode panel options in the Chart Builder). The documents are produced with a query on your data source that considers:

The Source Documents modal displays the number of documents from your data source that match your query conditions, although only 20 of the documents are viewable as samples.

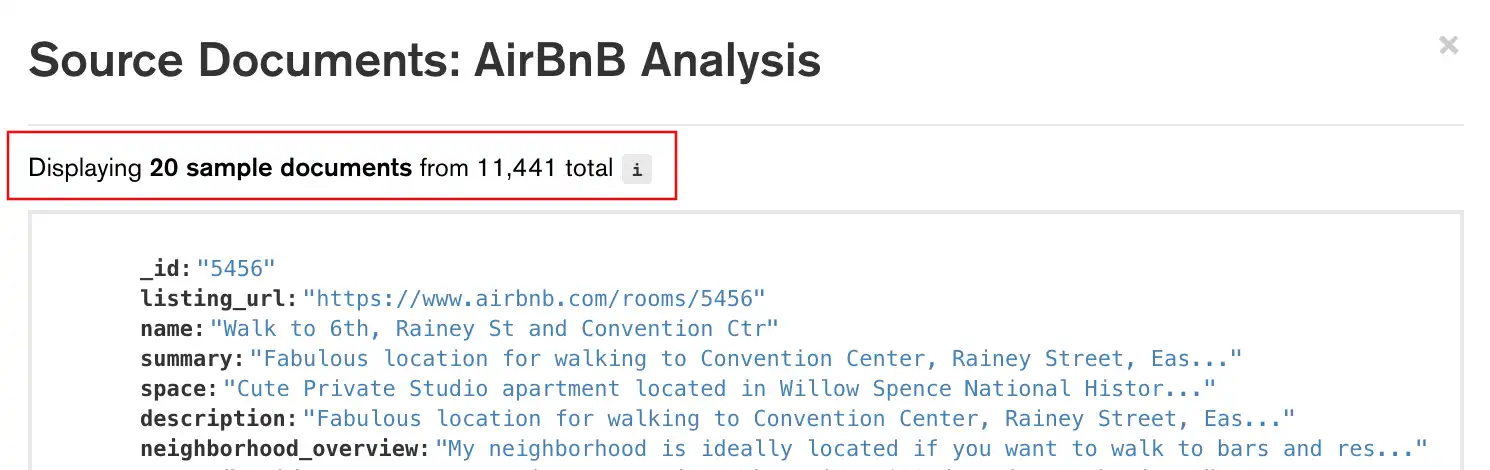

The View sample documents modal displays the document count just above the document samples.
click to enlarge

After you have configured a valid chart, you can view the source query for the chart. Atlas Charts uses a special type of query to create a chart called an aggregation pipeline. To view the query, click View Aggregation Pipeline from the menu. This aggregation pipeline includes the stages that both the data source and the Chart Builder apply.


Some Chart Builder configuration options don't apply aggregation stages. These options are applied to a chart's visualization and do not affect the underlying data.

To use the pipeline in other MongoDB tools, such as Compass or the mongo shell, click next to the pipeline in the Aggregation Pipeline modal.

To learn how Charts constructs aggregation pipelines, see Backing Aggregation Pipeline.

After you have configured a valid chart, you can view and export the underlying data as a table. To view the chart data, click View chart data from the menu. Each row in the table represents a data point.


Table Differs from Chart Visualization

Some configuration options you see reflected on a chart visualization are not applied to the table. The Chart Data table displays underlying data retrieved with your full aggregation pipeline, and not all Chart Builder configuration options apply aggregation stages. Review your data to verify its contents.

If you want to analyze your underlying data with a third-party tool, you can download your data from the Chart Data modal. To download your data, click Download - CSV or Download - JSON.


You can also retrieve chart data using the Embedding SDK getData() method. To learn more about SDK API methods, see the Embedding SDK Reference.

Viewing chart data will display a table of the values used to create a chart. It also allows for downloading a CSV or JSON representation of that table.
click to enlarge
