Gauge Chart

On this page

  • Gauge Chart Encoding Channels
  • Target and Maximum Interaction
  • Use Cases
  • Cutomization Options
  • Examples

Gauge Charts display data as a percentage of a semicircle, with customizable minimum and maximum values. Optionally you may also specify a Target value, which renders as a heavy line within the gauge's range.

Gauge charts provide the following encoding channels:

Encoding Channel
Description
Value
The data value for the chart. Each gauge chart can have only one data value. Required
Target

A specific value of importance to the chart, such as a sales quota or maximum capacity level. If no maximum value for the chart is set, the Target value serves as the upper limit for the chart. See Target and Maximum Interaction for more information on how the maximum range of the gauge is determined.

If you wish to set a specific value as the chart target, you can create a calculated field, assign it your desired value, and encode it in the Target channel.

Note

The Target channel is an aggregation. To set a specific arbitrary value, set your calculated field to a constant value and choose either Max or Min from the Aggregate dropdown menu.

The value encoded in the Target channel and the Maximum customization affect each others' behavior. The followling table explains the effect on the chart of having one, both, or neither of the values set.

Target
Maximum
Behavior
None
Default
No target line. Gauge maximum is the next power of 10 above the value of the Value channel.
None
Custom
No target line. Gauge maximum is the specified value.
Encoded
Default
Target line is rendered. Gauge maximum matches the target value.
Encoded
Custom
Target line is rendered. Gauge maximum is the specified value.

Gauge charts are useful for displaying a data value represented as a fraction of a larger value. Gauge charts are a familiar way to represent a situation in which a container may be either full or empty or somewhere in between.

Consider using gauge charts to represent:

  • Occupancy rates in a hotel
  • Progress towards a fundraising goal
  • The water level in a reservoir

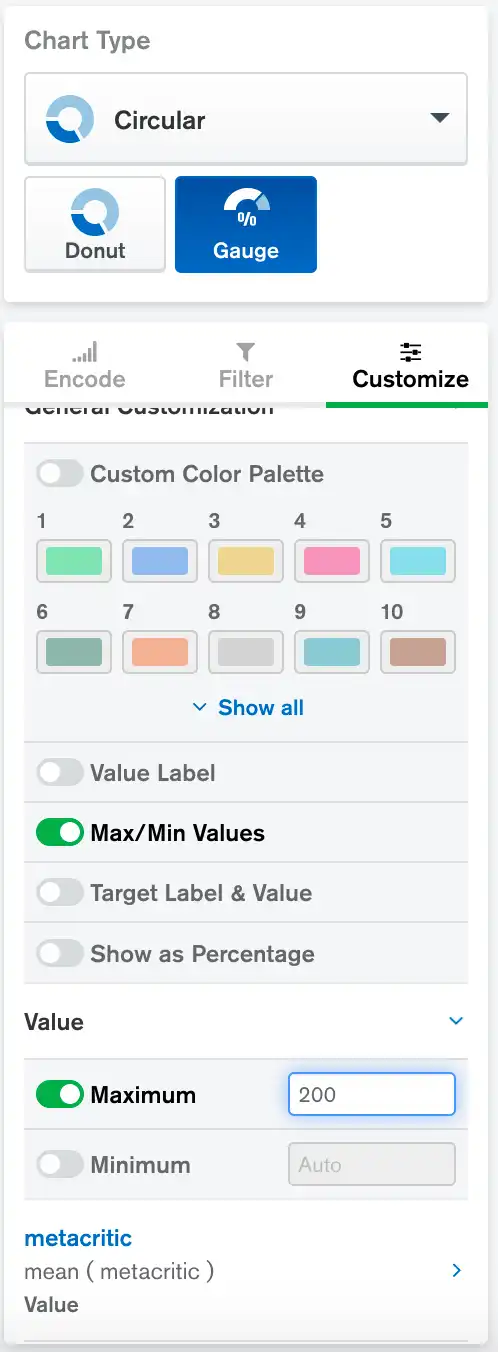

To access the customization options, click the Customize tab above the encoding channels in the Chart Builder.

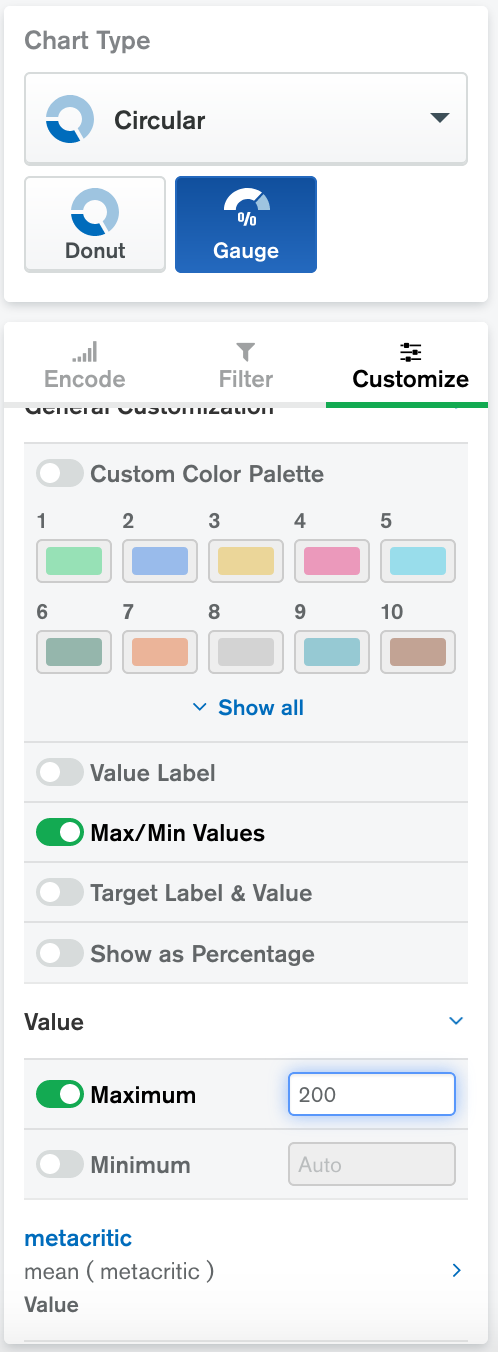

Customization tab
Option
Description
Default
Custom Color Palette
Only the first palette color is used by gauge charts.
Off
Value Label
Controls whether a label is displayed above the Value number.
Off
Max/Min Values
Controls whether the minimum and maximum range numbers are displayed at the left and right edges of the chart.
On
Target Label & Value
Controls whether the Target value and its label are displayed at the bottom of the chart.
Off
Show As Percentage
Controls whether the value of your gauge chart is shown as a percentage of the Target value. If you enable this option and do not have a Target value, the value is shown is a percentage of the maximum value. For more information, see Target and Maximum Interaction.
Off
Option
Description
Default
Maximum
Specifies the maximum range of the gauge when enabled. See Target and Maximum Interaction for more information on how the maximum range of the gauge is determined.
Off
Minimum
Specifies the minimum range of the gauge when enabled. Defaults to 0.
Off
Option
Description
Default
Label Override
When enabled, displays a custom label for the Value number if the Value Label option is also enabled. Displays a custom label for the Value Field tooltips.
Off
Number Formatting
Controls formatting of the large value in the chart, the tooltips, and the min/max labels.
None
Option
Description
Default
Label Override
When enabled, displays custom label for the Target value if the Target Label & Value option is also enabled. Displays a custom label for the Target Field tooltips.
Off
Number Formatting
Controls formatting of the Target value if it is displayed under the chart.
None

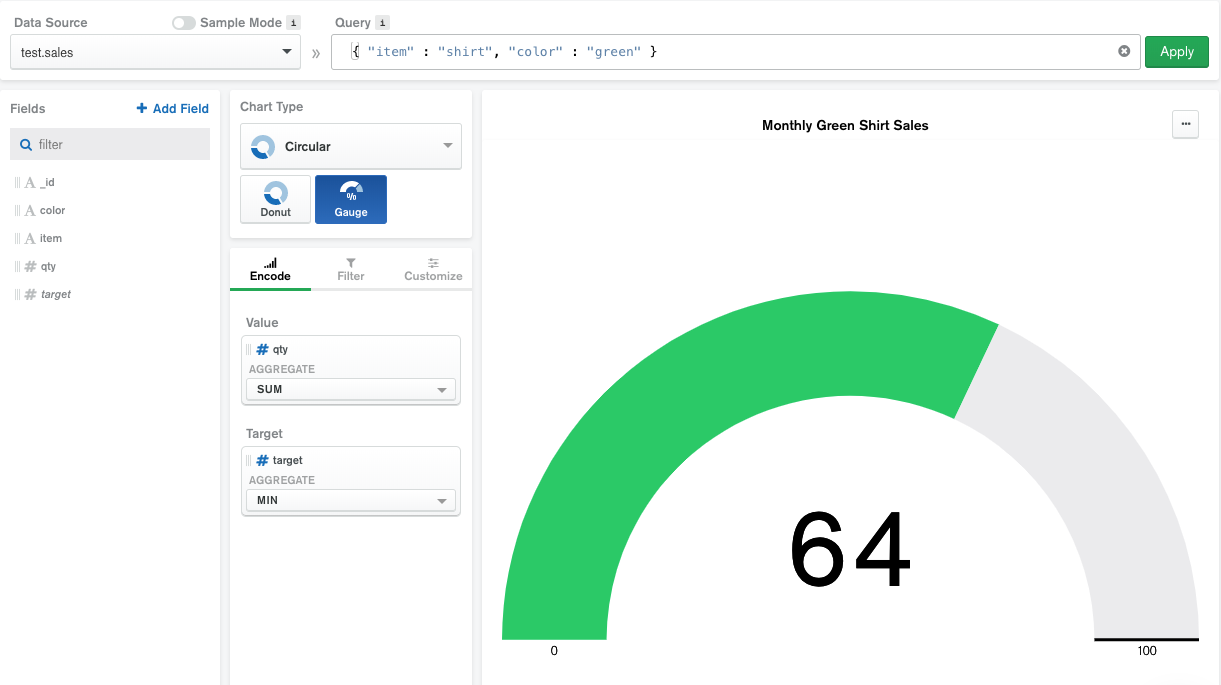

The following chart shows progress towards a goal. A clothing retailer has a goal of selling 100 green shirts per month.

Gauge chart example

This chart uses a filter to find sales order documents in which the item field is shirt and the color field is green. The qty field is encoded in the Value channel to a get an aggregated total.

The 100-shirt goal is a constant value, so the chart uses a calculated field named target with a value of 100 encoded in the Target channel.
