Interpret Explain Plan Results

You can use explain results to determine the following information about a query:

The amount of time a query took to complete
Whether the query used an index
The number of documents and index keys scanned to fulfill a query

Note

Explain plan results for queries are subject to change between MongoDB versions.

The cursor.explain("executionStats") and the db.collection.explain("executionStats") methods provide statistics about the performance of a query. These statistics can be useful in measuring if and how a query uses an index. See db.collection.explain() for details.

MongoDB Compass provides an Explain Plan modal, which displays statistics about the performance of a query. These statistics can be useful in measuring if and how a query uses an index.

Evaluate the Performance of a Query

The examples on this page use data from the sample_mflix sample dataset. For details on how to load this dataset into your self-managed MongoDB deployment, see Load the sample dataset. If you made any modifications to the sample databases, you may need to drop and recreate the databases to run the examples on this page.

The examples on this page use data from the sample_mflix sample dataset. For details on how to load this dataset into your deployment, see Import Sample Data Into Your Atlas Deployment.

After you load the dataset, connect MongoDB Compass to the same deployment and open the movies collection.

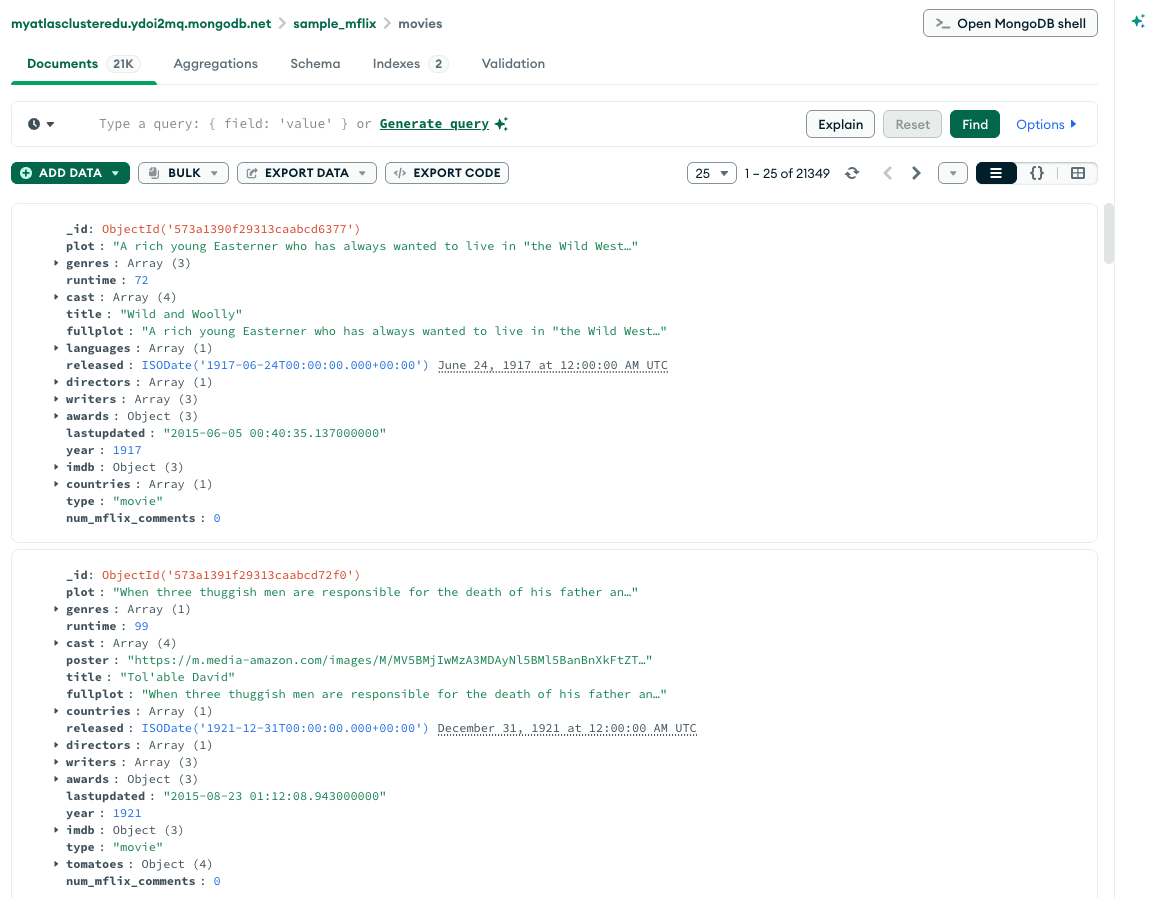

The collection documents appear in MongoDB Compass as follows:

Compass listing documents in the movies collection

click to enlarge

Query with No Index

The following query retrieves documents where the year field has a value between 2000 and 2005, inclusive:

db.movies.find( { year: { $gte: 2000, $lte: 2005 } } )

This query matches 3809 of the 21349 documents in the collection.

To view the query plan selected, chain the cursor.explain("executionStats") cursor method to the end of the find command:

db.movies.find(
   { year: { $gte: 2000, $lte: 2005 } }
).explain("executionStats")

{
  queryPlanner: {
    namespace: 'sample_mflix.movies',
    winningPlan: {
      stage: 'COLLSCAN',
      '...': '...'
    },
    '...': '...'
  },
  executionStats: {
    executionSuccess: true,
    nReturned: 3809,
    totalKeysExamined: 0,
    totalDocsExamined: 21349,
    executionStages: {
      stage: 'COLLSCAN',
      '...': '...'
    },
    '...': '...'
  },
  '...': '...'
}

queryPlanner.winningPlan.stage displays COLLSCAN to indicate a collection scan.

Collection scans indicate that the mongod had to scan the entire collection document by document to identify the results. This is a generally expensive operation and can result in slow queries.
executionStats.nReturned displays 3809 to indicate that the winning query plan returns 3,809 documents.
executionStats.totalKeysExamined displays 0 to indicate that this query is not using an index.
executionStats.totalDocsExamined displays 21349 to indicate that MongoDB had to scan all 21,349 documents in the collection to find the 3,809 matching documents.

The following query retrieves documents where the year field has a value between 2000 and 2005, inclusive:

Copy the following filter into the Compass query bar and click Find:

{ year: { $gte: 2000, $lte: 2005 } }

This query matches 3809 of the 21349 documents in the collection.

To view the query plan, click Explain in the query bar.

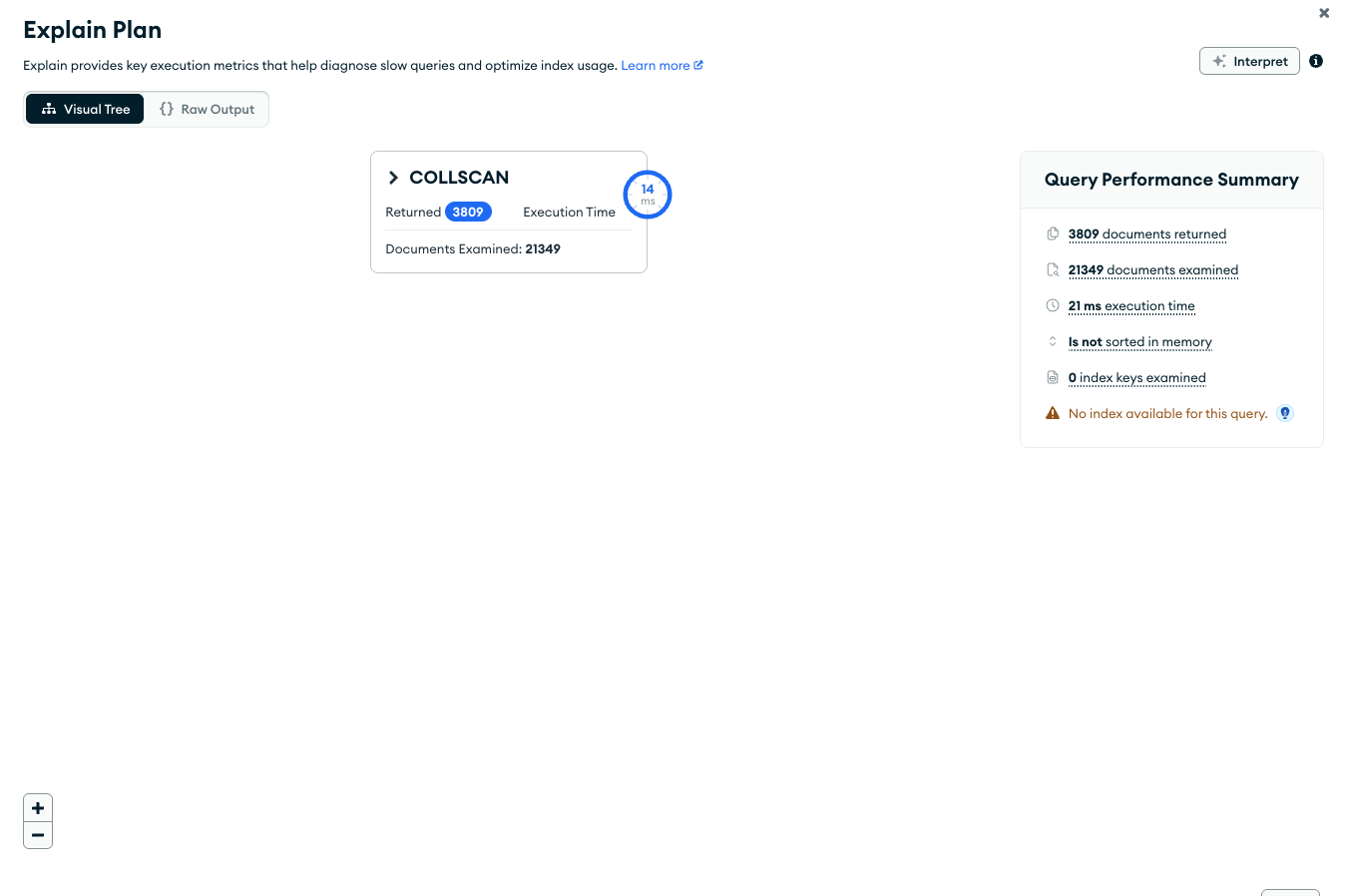

MongoDB Compass displays the query plan as follows:

Compass no-index query plan for the movies
collection

click to enlarge

Visual Tree

The Query Performance Summary shows the execution stats of the query:
- Documents Returned displays 3809 to indicate that the winning query plan returns 3,809 documents.
- Documents Examined displays 21349 to indicate that MongoDB had to scan all 21,349 documents in the collection to find the 3,809 matching documents.
- Index Keys Examined displays 0 to indicate that this query is not using an index.
MongoDB Compass displays the COLLSCAN query stage to indicate that a collection scan was used for this query. Collection scans indicate that the mongod had to scan the entire collection document by document to identify the results. This is a generally expensive operation and can result in slow queries.

Raw JSON

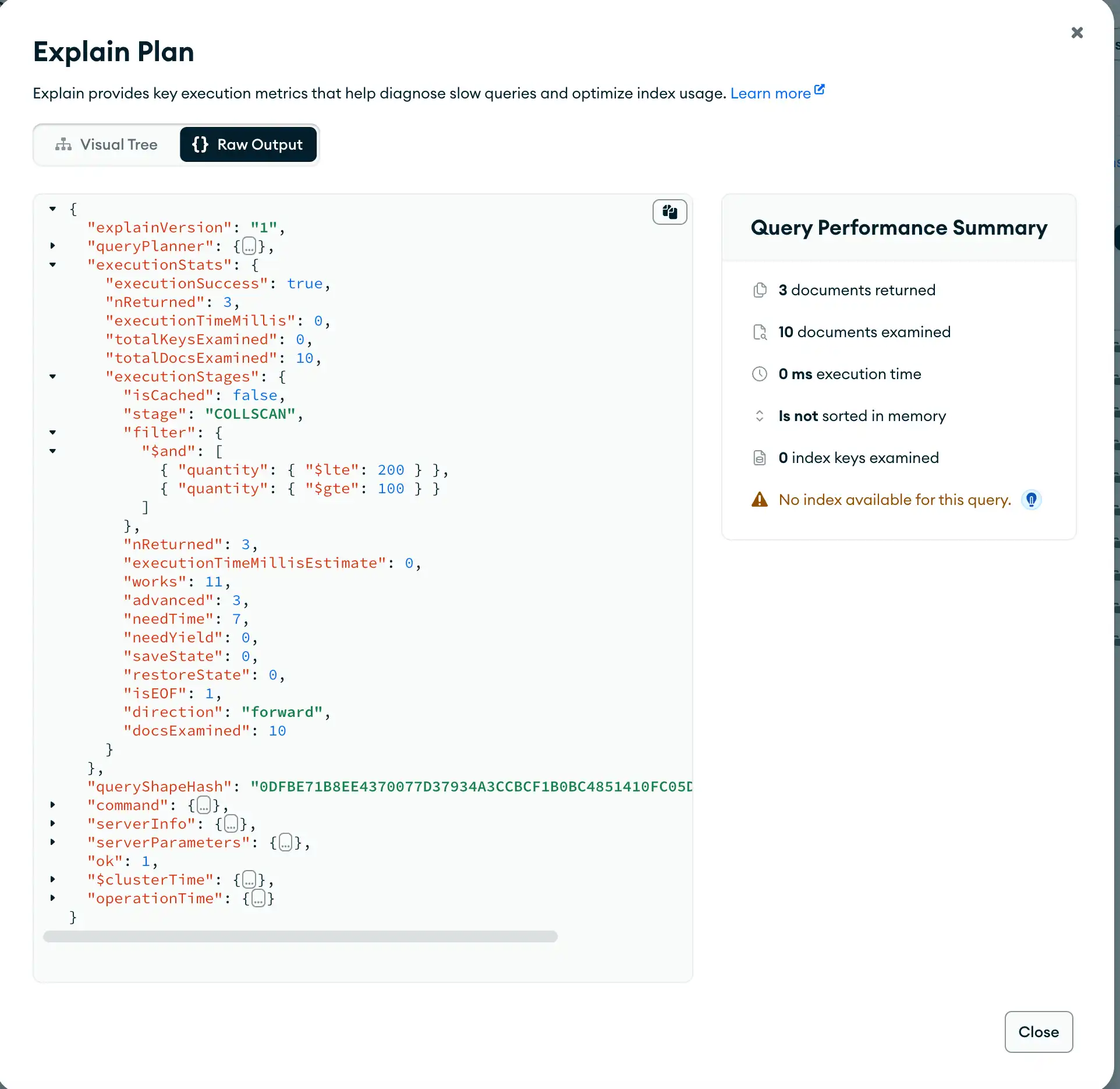

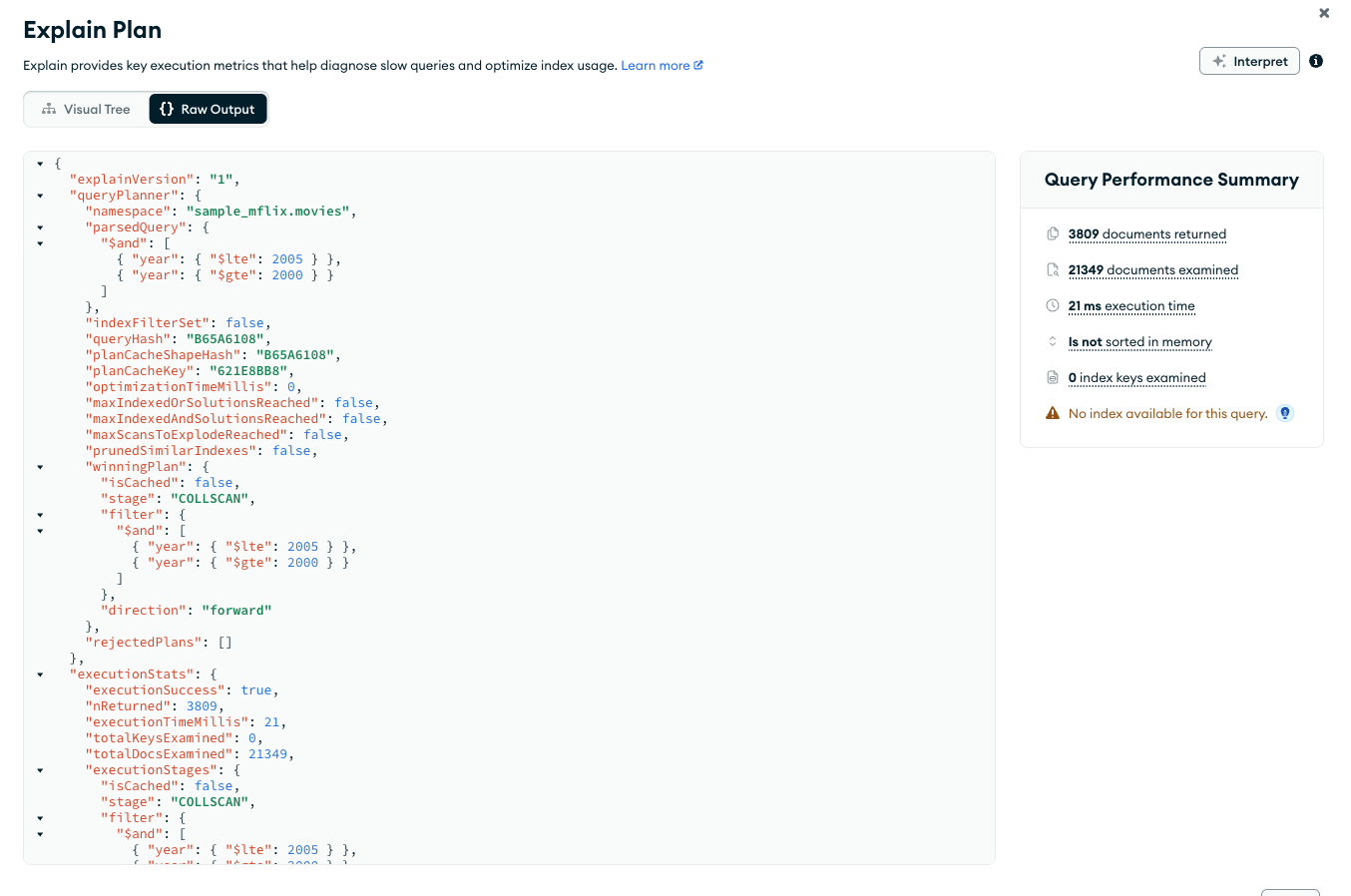

The Explain Plan details can also be viewed in raw JSON format by clicking the Raw Output option:

click to enlarge

The difference between the number of matching documents and the number of examined documents may suggest that the query might benefit from the use of an index to improve efficiency.

Query with Index

To support the query on the year field, add an index on the year field:

db.movies.createIndex( { year: 1 } )

To view the query plan statistics, use the explain() method:

db.movies.find(
   { year: { $gte: 2000, $lte: 2005 } }
).explain("executionStats")

{
  queryPlanner: {
    namespace: 'sample_mflix.movies',
    winningPlan: {
      stage: 'FETCH',
      inputStage: {
        stage: 'IXSCAN',
        keyPattern: {
          year: 1
        },
        '...': '...'
      },
      '...': '...'
    },
    '...': '...'
  },
  executionStats: {
    executionSuccess: true,
    nReturned: 3809,
    totalKeysExamined: 3809,
    totalDocsExamined: 3809,
    '...': '...'
  },
  '...': '...'
}

queryPlanner.winningPlan.inputStage.stage displays IXSCAN to indicate index use.
executionStats.nReturned displays 3809 to indicate that the winning query plan returns 3,809 documents.
executionStats.totalKeysExamined displays 3809 to indicate that MongoDB scanned 3,809 index entries. The number of keys examined match the number of documents returned, meaning that the mongod only had to examine index keys to return the results. The mongod did not have to scan all of the documents, and only the 3,809 matching documents had to be pulled into memory. This results in a very efficient query.
executionStats.totalDocsExamined display 3809 to indicate that MongoDB scanned 3,809 documents.

To support the query on the year field, add an index on the year field:

Click the Indexes tab for the sample_mflix.movies collection.
Click Create, then select Index from the dropdown menu.
Select year from the Select or type a field name dropdown.
Select 1 (asc) from the Select a type dropdown.
Click Create Index.

Note

Leaving the index name field blank causes MongoDB Compass to create a default name for the index.

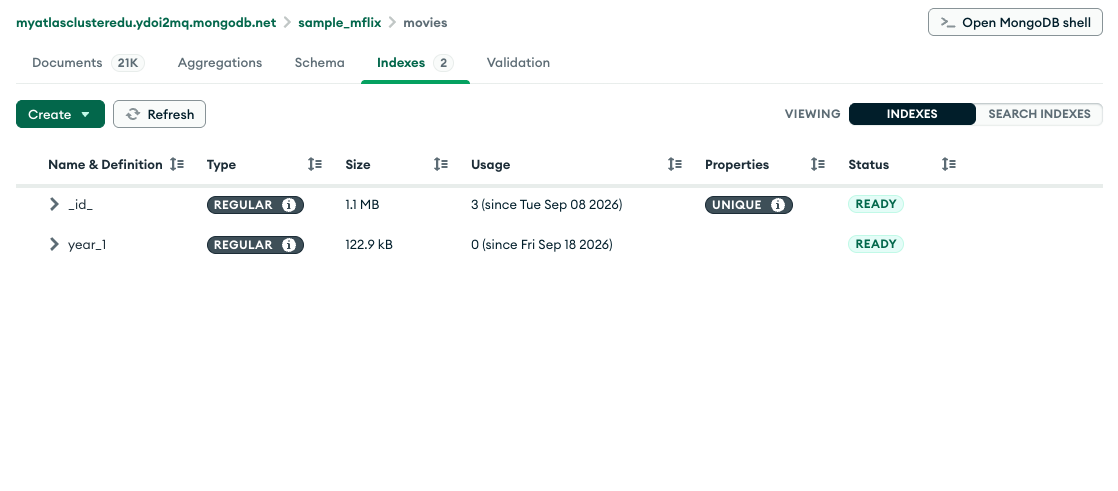

You can now see your newly created index in the Indexes tab:

Compass showing the year index in the Indexes tab

click to enlarge

Return to the Documents tab for the sample_mflix.movies collection and re-run the query from the previous step:

{ year: { $gte: 2000, $lte: 2005 } }

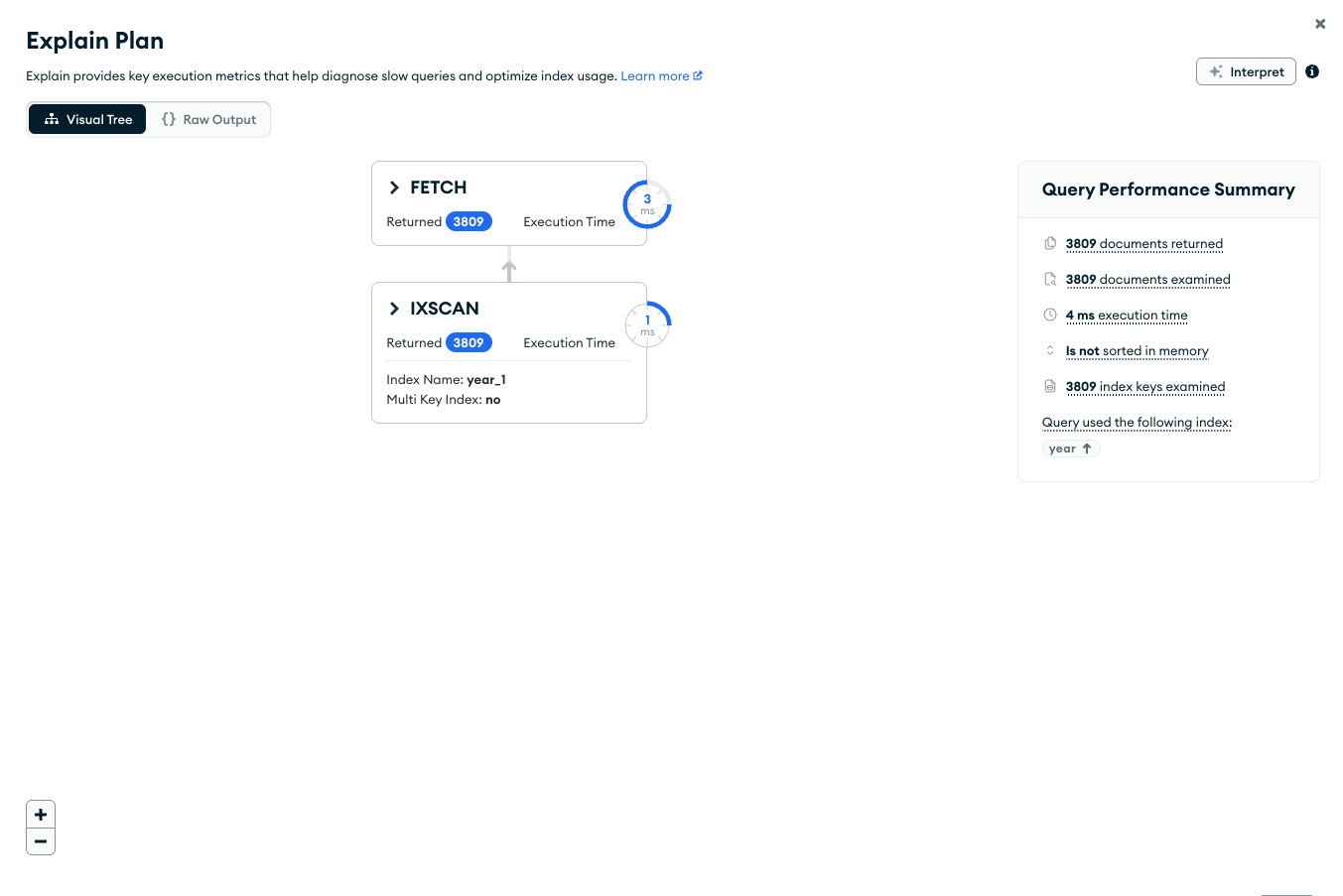

Open the Explain Plan modal. MongoDB Compass displays the query plan as follows:

Compass explain plan with the year index

click to enlarge

Visual Tree

The Query Performance Summary shows the execution stats of the query:
- Documents Returned displays 3809 to indicate that the winning query plan returns 3,809 documents.
- Documents Examined displays 3809 to indicate that MongoDB scanned 3,809 documents.
- Index Keys Examined displays 3809 to indicate that MongoDB scanned 3,809 index entries. The number of keys examined match the number of documents returned, meaning that the mongod only had to examine index keys to return the results. The mongod did not have to scan all of the documents, and only the 3,809 matching documents had to be pulled into memory. This results in a very efficient query.
- At the bottom of the Query Performance Summary, MongoDB Compass shows that the query used the year index.
To the left of the Query Performance Summary, MongoDB Compass displays the query stages FETCH and IXSCAN. IXSCAN indicates that the mongod used an index to satisfy the query before executing the FETCH stage and retrieving the documents.

Raw JSON

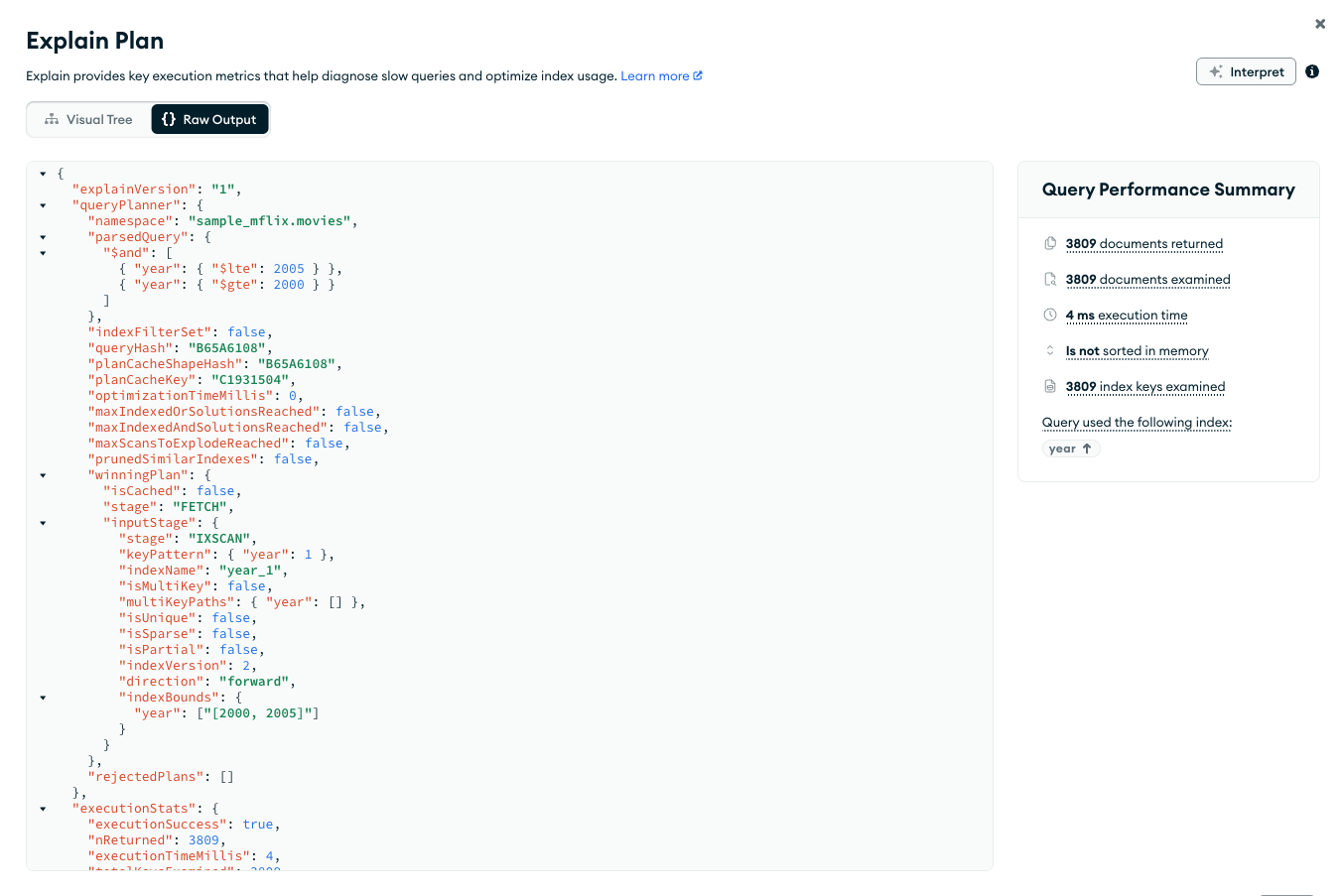

The explain details can also be viewed in raw JSON format by clicking the Raw Output option:

click to enlarge

Without the index, the query scans the entire collection to return the matching documents. The query also has to scan the entirety of each document, potentially pulling them into memory. This results in an expensive and potentially slow query operation.

When run with an index, the query scans only as many index entries and documents as it returns, resulting in a more efficient query.

Compare Performance of Indexes

To manually compare the performance of a query using more than one index, you can use the hint() method in conjunction with the explain() method.

Consider the following query:

db.movies.find( {
   year: {
      $gte: 2000, $lte: 2005
   },
   rated: "PG"
} )

This query matches 235 documents.

To support the query, add a compound index. With compound indexes, the order of the fields matter.

For example, add the following two compound indexes. The first index orders by year field first, and then the rated field. The second index orders by rated first, and then the year field.

db.movies.createIndex( { year: 1, rated: 1 } )
db.movies.createIndex( { rated: 1, year: 1 } )

Evaluate the effect of the first index on the query:

db.movies.find(
   { year: { $gte: 2000, $lte: 2005 }, rated: "PG" }
).hint( { year: 1, rated: 1 } ).explain("executionStats")

{
  queryPlanner: {
    namespace: 'sample_mflix.movies',
    winningPlan: {
      stage: 'FETCH',
      inputStage: {
        stage: 'IXSCAN',
        keyPattern: {
          year: 1,
          rated: 1
        },
        '...': '...'
      },
      '...': '...'
    },
    '...': '...'
  },
  executionStats: {
    executionSuccess: true,
    nReturned: 235,
    totalKeysExamined: 246,
    totalDocsExamined: 235,
    '...': '...'
  },
  '...': '...'
}

MongoDB scanned 246 index keys (executionStats.totalKeysExamined) to return 235 matching documents (executionStats.nReturned).

Evaluate the effect of the second index on the query:

db.movies.find(
   { year: { $gte: 2000, $lte: 2005 }, rated: "PG" }
).hint( { rated: 1, year: 1 } ).explain("executionStats")

{
  queryPlanner: {
    namespace: 'sample_mflix.movies',
    winningPlan: {
      stage: 'FETCH',
      inputStage: {
        stage: 'IXSCAN',
        keyPattern: {
          rated: 1,
          year: 1
        },
        '...': '...'
      },
      '...': '...'
    },
    '...': '...'
  },
  executionStats: {
    executionSuccess: true,
    nReturned: 235,
    totalKeysExamined: 235,
    totalDocsExamined: 235,
    '...': '...'
  },
  '...': '...'
}

MongoDB scanned 235 index keys (executionStats.totalKeysExamined) to return 235 matching documents (executionStats.nReturned).

The second compound index, { rated: 1, year: 1 }, is therefore the more efficient index for supporting the example query, as the MongoDB server only needs to scan 235 index keys to find all matching documents using this index, compared to 246 when using the compound index { year: 1, rated: 1 }.
