At AWS re:Invent, we demonstrated how MongoDB Mobile, MongoDB Stitch, and AWS services could be used to build a cloud-controlled Mars rover – read the overview post for the setup. This post focuses on how Stitch Mobile Sync synchronizes the user commands written to MongoDB Atlas by the Mission Control app with the MongoDB Mobile database embedded in the rover (and how it syncs the data back to Atlas when it's updated in MongoDB Mobile).

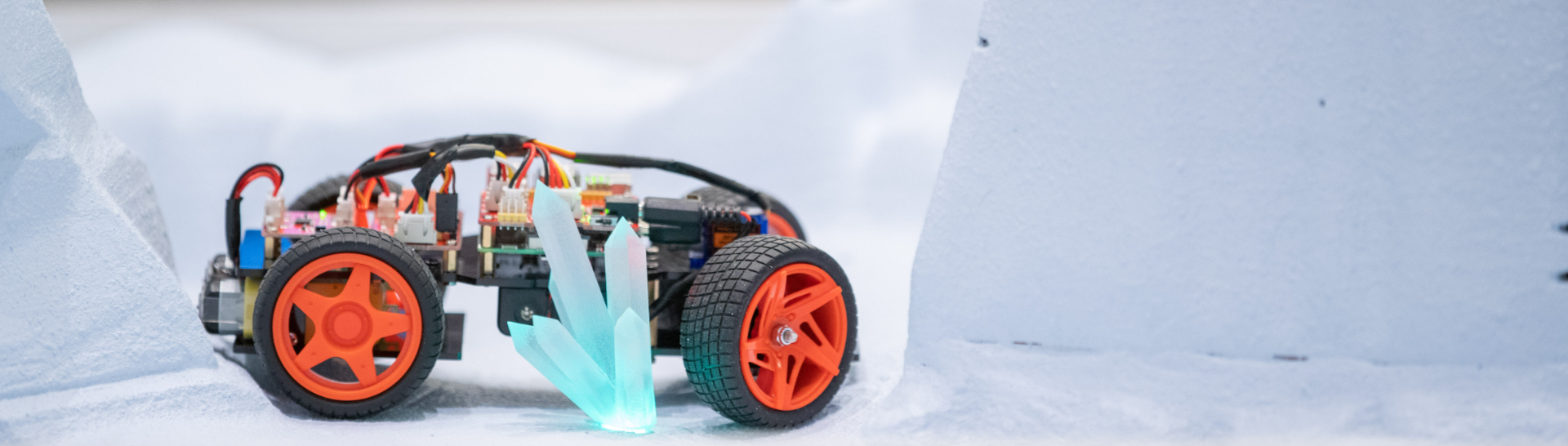

MongoDB Stitch Rover - Stitch Mobile Sync

Many people who took part in the demo at re:Invent asked why Mission Control wrote the commands to Atlas rather than sending them directly to the rover. The reason is that you can't guarantee that the rover will always have network access (and when thousands descended on the expo hall for the Monday evening social, we learned that maintaining a connection over conference WiFi can be just as tricky as maintaining one to Mars). The commands are stored in Atlas and then synchronized to the rover whenever it's online.

Stitch Mobile Sync architecture

Each rover has a single document in the rover.rovers collection, and each command is stored as an element in the moves array:

{
  "_id" : "5bee1053fdc728f2623e20eb",
  "moves" : [
    {
      "_id" : "5c0e4db5119f6e36c7d06f55",
      "angle" : 90,
      "speed" : 2
    },
    {
      "_id" : "5c0e4dbc119f6e36c7d06f56",
      "angle" : 118,
      "speed" : 3
    },
    {
      "_id" : "5c0e4dc3119f6e36c7d06f57",
      "angle" : 45,
      "speed" : -1
    }
  ],
  "__stitch_sync_version" : {
    "spv" : 1,
    "id" : "2f704b04-2338-4c75-a7cf-d555c94cb556",
    "v" : NumberLong(10313)
  }
}

Stitch Mobile sync automatically pushes the document to the rover's MongoDB Mobile database, and the rover's Android app moves the rover in response. Once a move command has been acted on, the app removes it from the array and updates the document in MongoDB Mobile. Stitch Mobile Sync then pushes the change to Atlas:

doMove(move);
final Document update = new Document("$pull", new Document("moves",
                new Document("_id", move.getId())));
rovers.sync().updateOne(getRoverFilter(), update).addOnCompleteListener(task -> {
  if (!task.isSuccessful()) {
    Log.d(TAG, "failed to update rover document", task.getException());
  }
  try {
    Thread.sleep(MOVE_LOOP_WAIT_TIME_MS);
  } catch (InterruptedException e) {
    e.printStackTrace();
  }
  moveLoop();
}

You may have noticed that the same document is being updated in both Atlas and MongoDB Mobile, raising the possibility of conflicts. A conflict occurs when the document is updated in one database and then again in the second before the first change has been synced. Sketchy network connectivity increases that window and makes conflicts more likely. Fortunately, Stitch Mobile Sync allows the client application to register a conflict handler function. The function is passed both versions of the document and can decide what the 'winning' document should look like. The conflict handling could be as simple as "local wins", but in this case, we take the remote document (which contains at least one command not yet added to the local database) and remove any commands that have already been acted on:

public class RoverActivity extends Activity
  implements ConflictHandler<Rover> {

  @Override
  public Rover resolveConflict(
    final BsonValue documentId,
    final ChangeEvent<Rover> localEvent,
    final ChangeEvent<Rover> remoteEvent
    ) {
    if (localEvent.getFullDocument().getLastMoveCompleted() == null) {
      return remoteEvent.getFullDocument();
    }
    // Given this sync model consists of a single producer and a
    // single consumer, a conflict can only occur when a production
    // and consumption happens at the same "time". That means
    // that there should always be an overlap of moves during a
    // conflict and that the last move completed is always present
    // in the remote. Therefore we should trim all moves up to
    // and including the last completed move.
    final Rover localRover = localEvent.getFullDocument();
    final String lastMoveCompleted = localRover.getLastMoveCompleted();
    final Rover remoteRover = remoteEvent.getFullDocument();
    final List<Move> nextMoves = new ArrayList<>(remoteRover
      .getMoves().size());
    boolean caughtUp = false;
    for (final Move move : remoteRover.getMoves()) {
      if (move.getId().equals(lastMoveCompleted)) {
        caughtUp = true;
      } else
      {
        if (caughtUp) {
          nextMoves.add(move);
        }
      }
    }
    return new Rover(localRover, nextMoves);
  }
}

The next post in this series looks at how Stitch Functions can be used to provide an aggregated view of the rover's sensor data.

If you can't wait then you can find all of the code in the Stitch Rover GitHub repo.

In summary, this is what we cover in the five posts:

  • MongoDB Stitch/Mobile Mars Rover Lands at AWS re:Invent describes how MongoDB Stitch, MongoDB Mobile, Atlas, Android Things, a Raspberry Pi, and Amazon Kinesis are used to reliably control our Mars rover.
  • MongoDB Stitch QueryAnywhere focuses on how the Mission Control app records the user commands in MongoDB Atlas by calling the Stitch SDK directly from the frontend code.
  • MongoDB Stitch Mobile Sync shows how Stitch Mobile Sync synchronizes the user commands written to MongoDB Atlas by the Mission Control app with the MongoDB Mobile database embedded in the rover (and how it syncs the data back to Atlas when it's updated in MongoDB Mobile).
  • MongoDB Stitch Functions focuses on how a Stitch Function is used to provide aggregated sensor data such as the average temperature for the last 5 minutes.
  • MongoDB Stitch Triggers & Amazon Kinesis shows how we use MongoDB Stitch Triggers and the Stitch AWS service to push MongoDB database changes to Amazon Kinesis.
