In this guide, you can learn how to store and retrieve large files in MongoDB using the GridFS specification. GridFS splits large files into chunks and stores each chunk as a separate document. When you query GridFS for a file, the driver assembles the chunks as necessary. The driver implementation of GridFS is an abstraction that manages the operations and organization of the file storage.

Use GridFS if the size of your files exceeds the BSON document size limit of 16 MB. GridFS also helps you access files without loading the entire file into memory. For more detailed information on whether GridFS is suitable for your use case, see the GridFS server manual page.

GridFS organizes files in a bucket, a group of MongoDB collections that contain the chunks of files and information describing them. The bucket contains the following collections:

  • The chunks collection, which stores the binary file chunks.

  • The files collection, which stores the file metadata.

When you create a new GridFS bucket, the driver creates the preceding collections. The default bucket name fs prefixes the collection names, unless you specify a different bucket name. The driver creates the new GridFS bucket during the first write operation.

The driver also creates an index on each collection to ensure efficient retrieval of the files and related metadata. The driver creates indexes if they do not already exist and when the bucket is empty. For more information on GridFS indexes, see the server manual page on GridFS Indexes.

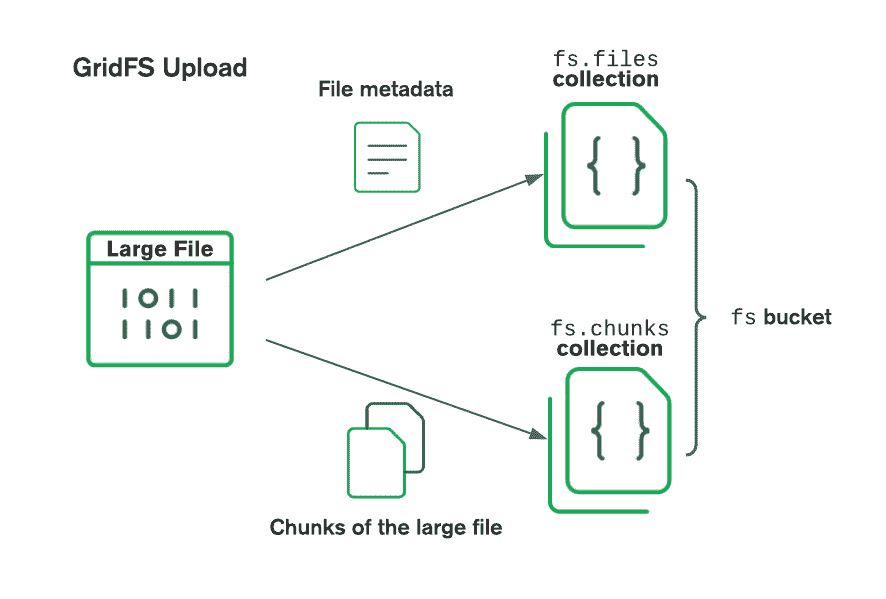

When storing files with GridFS, the driver splits the files into smaller chunks, each represented by a separate document in the chunks collection. It also creates a document in the files collection that contains a file ID, file name, and other file metadata. The following diagram shows how GridFS splits the uploaded files:

A diagram that shows how GridFS uploads a file to a bucket

When retrieving files, GridFS fetches the metadata from the files collection in the specified bucket, then uses that information to reconstruct the file from documents in the chunks collection. You can read the file into memory or output it to a stream.

To learn about GridFS operations and how to perform them, navigate to the following sections:

To store or retrieve files from GridFS, create a bucket or get a reference to an existing bucket on a MongoDB database. To create a GridFSBucket instance, call the NewBucket() method with a database parameter:

db := client.Database("db")
bucket, err := gridfs.NewBucket(db)
if err != nil {
panic(err)
}

Note

If a GridFS bucket already exists, the NewBucket() method returns a reference to the bucket rather than instantiating a new one.

By default, the new bucket is named fs. To instantiate a bucket with a custom name, call the SetName() method on a BucketOptions instance as follows:

db := client.Database("db")
opts := options.GridFSBucket().SetName("custom name")
bucket, err := gridfs.NewBucket(db, opts)
if err != nil {
panic(err)
}

You can upload a file into a GridFS bucket in one of the following ways:

  • Use the UploadFromStream() method, which reads from an input stream.

  • Use the OpenUploadStream() method, which writes to an output stream.

For either upload process, you can specify configuration information on an instance of UploadOptions. For a full list of UploadOptions fields, visit the API documentation.

To upload a file with an input stream, use the UploadFromStream() method with the following parameters:

  • Your file name

  • An io.Reader, with your opened file as a parameter

  • An optional opts parameter to modify the behavior of UploadFromStream()

The following code example reads from a file called file.txt and uploads the content to a GridFS bucket. It uses an opts parameter to set file metadata:

file, err := os.Open("path/to/file.txt")
uploadOpts := options.GridFSUpload().SetMetadata(bson.D{{"metadata tag", "first"}})
objectID, err := bucket.UploadFromStream("file.txt", io.Reader(file),
uploadOpts)
if err != nil {
panic(err)
}
fmt.Printf("New file uploaded with ID %s", objectID)

To upload a file with an output stream, use the OpenUploadStream() method with the following parameters:

  • Your file name

  • An optional opts parameter to modify the behavior of OpenUploadStream()

The following code example opens an upload stream on a GridFS bucket and sets the number of bytes in each chunk with an opts parameter. Then, it calls the Write() method on the content of file.txt to write its content to the stream:

file, err := os.Open("path/to/file.txt")
if err != nil {
panic(err)
}
// Defines options that specify configuration information for files
// uploaded to the bucket
uploadOpts := options.GridFSUpload().SetChunkSizeBytes(200000)
// Writes a file to an output stream
uploadStream, err := bucket.OpenUploadStream("file.txt", uploadOpts)
if err != nil {
panic(err)
}
fileContent, err := io.ReadAll(file)
if err != nil {
panic(err)
}
var bytes int
if bytes, err = uploadStream.Write(fileContent); err != nil {
panic(err)
}
fmt.Printf("New file uploaded with %d bytes written", bytes)

You can retrieve file metadata stored in the files collection of the GridFS bucket. Each document in the files collection contains the following information:

  • The file ID

  • The file length

  • The maximum chunk size

  • The upload date and time

  • The file name

  • A metadata document in which you can store any other information

To retrieve file data, call the Find() method on a GridFSBucket instance. You can pass a query filter as an argument to Find() to match only certain file documents.

Note

The Find() method requires a query filter as a parameter. To match all documents in the files collection, pass an empty query filter to Find().

The following example retrieves the file name and length of documents in the files collection with length values greater than 1500:

filter := bson.D{{"length", bson.D{{"$gt", 1500}}}}
cursor, err := bucket.Find(filter)
if err != nil {
panic(err)
}
type gridfsFile struct {
Name string `bson:"filename"`
Length int64 `bson:"length"`
}
var foundFiles []gridfsFile
if err = cursor.All(context.TODO(), &foundFiles); err != nil {
panic(err)
}
for _, file := range foundFiles {
fmt.Printf("filename: %s, length: %d\n", file.Name, file.Length)
}

You can download a GridFS file in one of the following ways:

  • Use the DownloadToStream() method to download a file to an output stream.

  • Use the OpenDownloadStream() method to open an input stream.

You can download a file in a GridFS bucket directly to an output stream using the DownloadToStream() method. DownloadToStream() takes a file ID and an io.Writer as parameters. The method downloads the file with the specified file ID and writes to the io.Writer.

The following example downloads a file and writes to a file buffer:

id, err := primitive.ObjectIDFromHex("62f7bd54a6e4452da13b3e88")
fileBuffer := bytes.NewBuffer(nil)
if _, err := bucket.DownloadToStream(id, fileBuffer); err != nil {
panic(err)
}

You can download a file in a GridFS bucket to memory with an input stream using the OpenDownloadStream() method. OpenDownloadStream() takes a file ID as a parameter and returns an input stream from which you can read the file.

The following example downloads a file into memory and reads its contents:

id, err := primitive.ObjectIDFromHex("62f7bd54a6e4452da13b3e88")
downloadStream, err := bucket.OpenDownloadStream(id)
if err != nil {
panic(err)
}
fileBytes := make([]byte, 1024)
if _, err := downloadStream.Read(fileBytes); err != nil {
panic(err)
}

You can update the name of a GridFS file in your bucket by using the Rename() method. Pass a file ID value and a new filename value as arguments to Rename().

The following example renames a file to "mongodbTutorial.zip":

id, err := primitive.ObjectIDFromHex("62f7bd54a6e4452da13b3e88")
if err := bucket.Rename(id, "mongodbTutorial.zip"); err != nil {
panic(err)
}

You can remove a file from your GridFS bucket by using the Delete() method. Pass a file ID value as an argument to Delete().

The following example deletes a file:

id, err := primitive.ObjectIDFromHex("62f7bd54a6e4452da13b3e88")
if err := bucket.Delete(id); err != nil {
panic(err)
}

You can delete a GridFS bucket by using the Drop() method.

The following code example deletes a GridFS bucket:

if err := bucket.Drop(); err != nil {
panic(err)
}

To learn more about GridFS and its operations, visit the GridFS manual page.

To learn more about the methods or types discussed in this guide, see the following API Documentation:
