The Data Explorer provides an aggregation pipeline builder to process your data. Aggregation pipelines transform your documents into aggregated results based on selected pipeline stages.

The MongoDB Atlas aggregation pipeline builder is primarily designed for building pipelines, rather than executing them. The pipeline builder provides an easy way to export your pipeline to execute in a driver.

To interact with data in the Cloud Manager UI:

1
  1. If it is not already displayed, select the organization that contains your desired project from the Organizations menu in the navigation bar.

  2. If it's not already displayed, select your desired project from the Projects menu in the navigation bar.

  3. If the Deployment page is not already displayed, click Deployment in the sidebar.

    The Deployment page displays.

2
  1. Select the desired MongoDB deployment.

  2. Select the Data tab.

To create and execute aggregation pipelines in the Data Explorer, you must have been granted at least the Project Data Access Read Only role.

To utilize the $out stage in your pipeline, you must have been granted at least the Project Data Access Read/Write role.

1

The main panel and Namespaces on the left side list the collections in the database.

Screenshot highlighting databases in Data Explorer.
click to enlarge
2

The main panel displays the Find, Indexes, and Aggregation views.

3

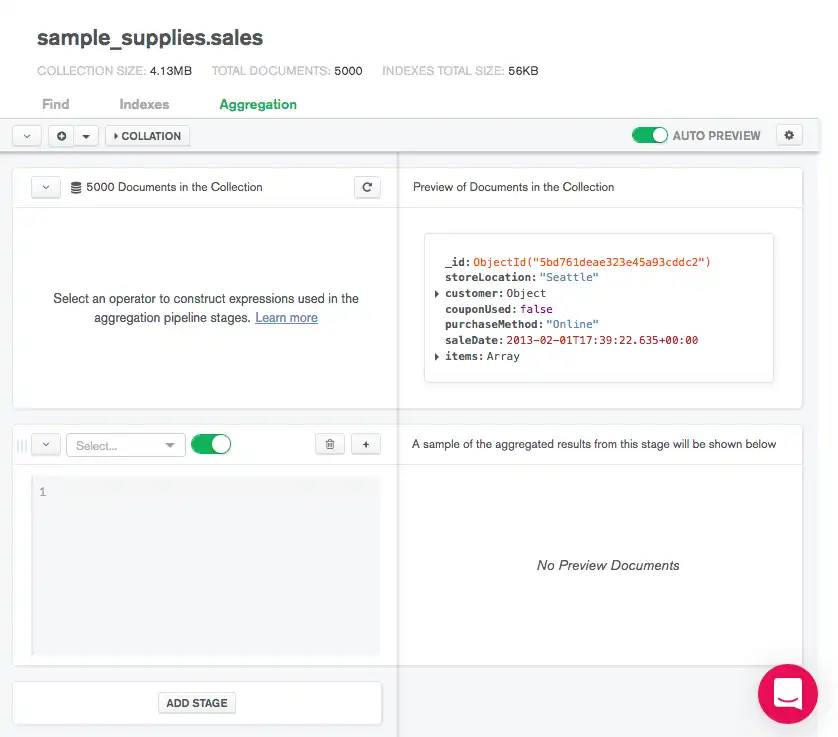

When you first open the Aggregation view, the Data Explorer displays an empty aggregation pipeline.

Initial view of aggregation pipeline builder.
click to enlarge
1

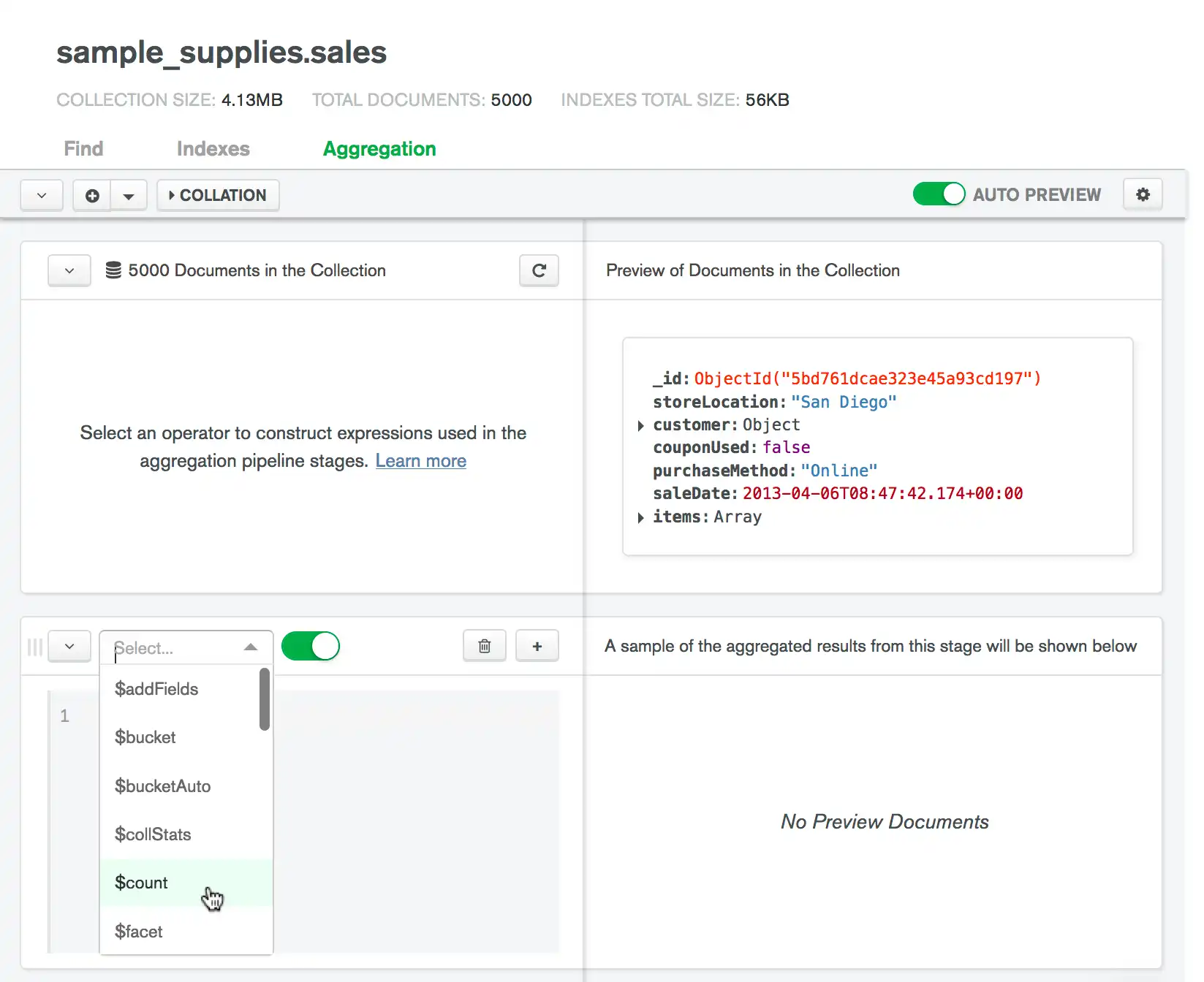

Select an aggregation stage from the Select dropdown in the bottom-left panel.

Screenshot showing selecting a pipeline stage.
click to enlarge

The toggle to the right of the dropdown dictates whether the stage is enabled.

2

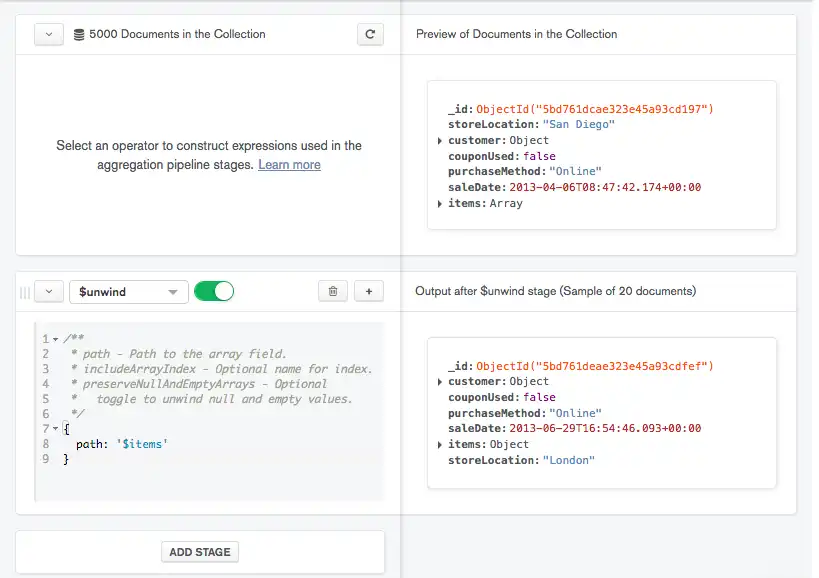

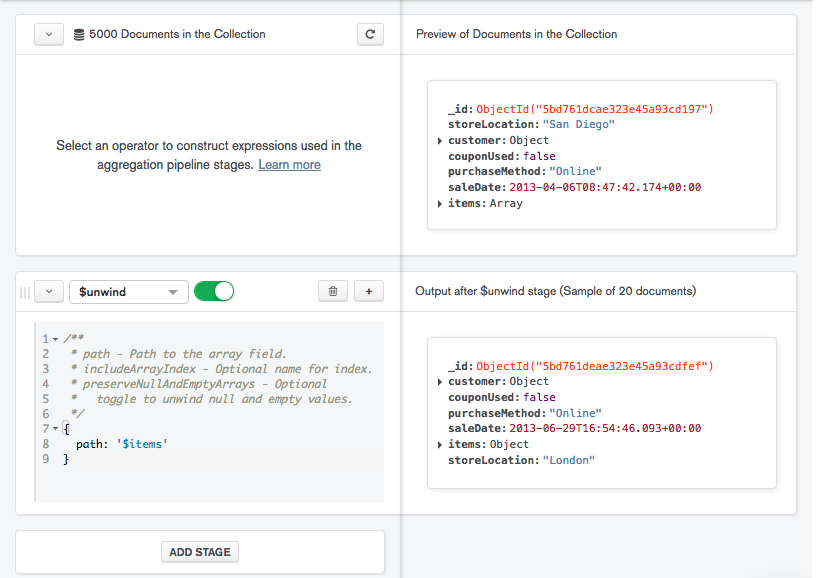

Fill in your stage with the appropriate values. If Comment Mode is enabled, the pipeline builder provides syntactic guidelines for your selected stage.

As you modify your stage, the Data Explorer updates the preview documents on the right based on the results of the current stage.

Screenshot showing a pipeline stage result.
click to enlarge
3

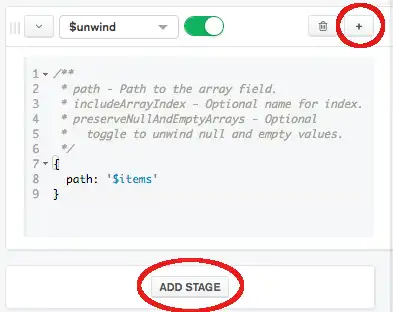

There are two ways to add additional stages to your pipeline:

  • Click the Add Stage button at the bottom of the pipeline to add a new stage at the end of your pipeline:

  • Click the button on a stage to add a new stage directly after the stage where the button was clicked.

Screenshot highlighting add stage button.

To delete a pipeline stage, click the icon on the desired stage.

4

Use collation to specify language-specific rules for string comparison, such as rules for lettercase and accent marks.

To specify a collation document, click Collation at the top of the pipeline builder.

A collation document has the following fields:

{
locale: <string>,
caseLevel: <boolean>,
caseFirst: <string>,
strength: <int>,
numericOrdering: <boolean>,
alternate: <string>,
maxVariable: <string>,
backwards: <boolean>
}

The locale field is mandatory; all other collation fields are optional. For descriptions of the fields, see Collation Document.

You can import aggregation pipelines from plain text into the pipeline builder to easily modify and verify your pipelines.

To import a pipeline from plain text:

1

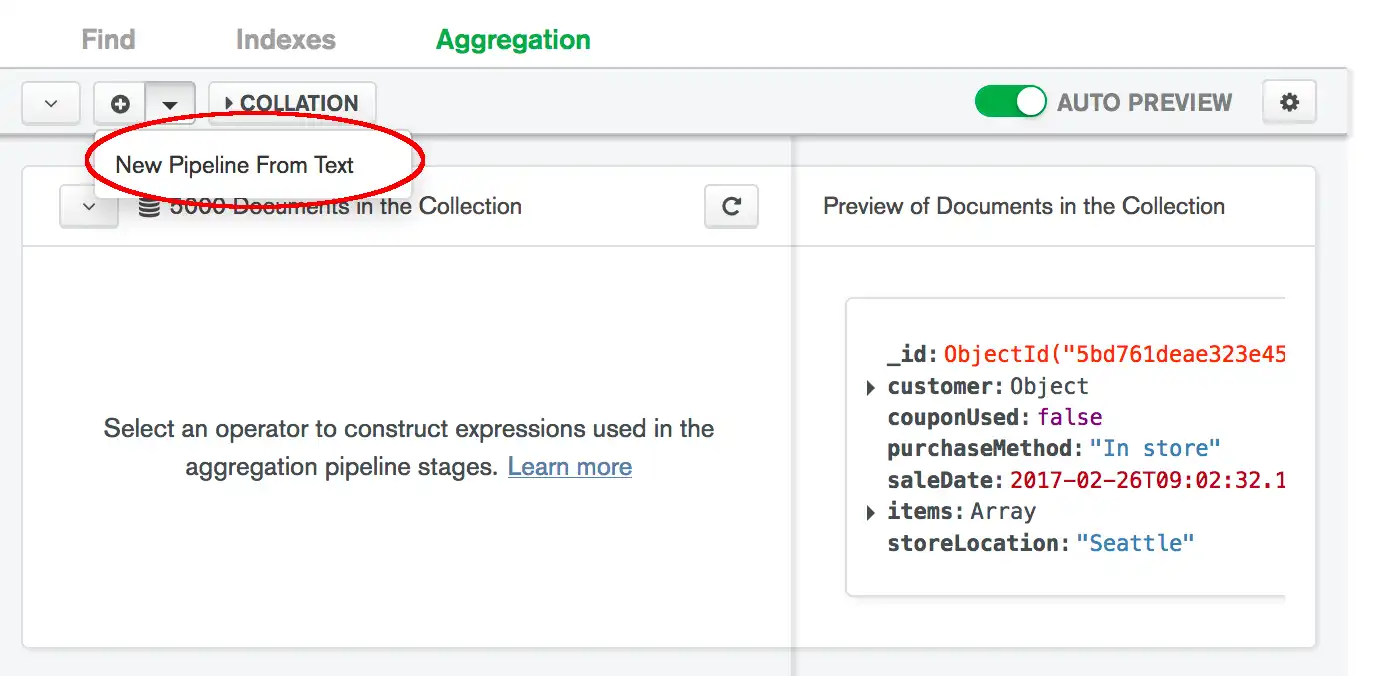

  1. Click the arrow next to the plus icon at the top of the pipeline builder.

  2. Click New Pipeline from Text.

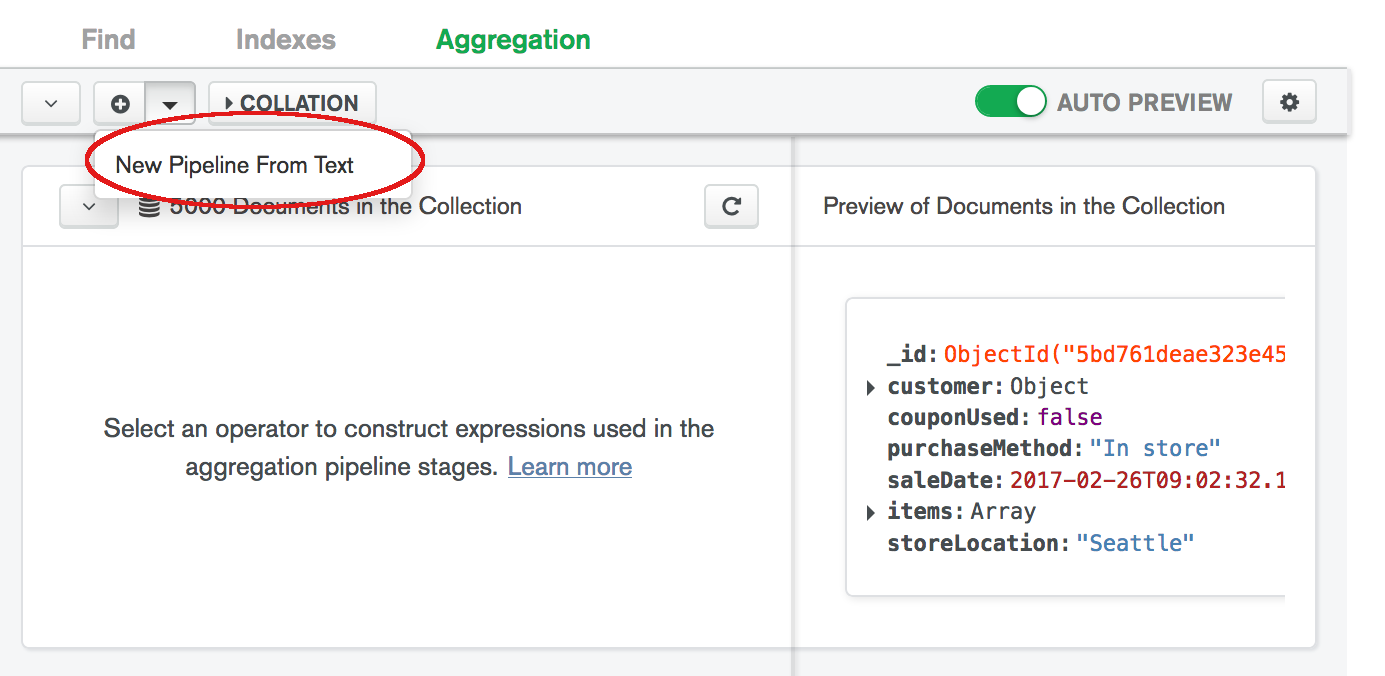

    Screenshot opening the new pipeline from text dialog.
    click to enlarge
2

Your pipeline must match the syntax of the pipeline parameter of the db.collection.aggregate() method.

3
4

To return your pipeline to the initial blank state, click the plus icon at the top of the pipeline builder.

You can use the aggregation pipeline builder to export your finished pipeline to one of the supported driver languages; Java, Node, C#, and Python 3. Use this feature to format and export pipelines for use in your applications.

To export your aggregation pipeline:

1

For instructions on creating an aggregation pipeline, see Create an Aggregation Pipeline.

2
3

In the Export Pipeline To dropdown, select your desired language.

The My Pipeline pane on the left displays your pipeline in mongosh syntax.

The pane on the right displays your pipeline in the selected language.

4

(Optional): Check the Include Import Statements option to include the required import statements for the language selected.

5

Click the Copy button at the top-right of the pipeline to copy the pipeline for the selected language to your clipboard. You can now integrate your pipeline into your application.

6

To modify the aggregation pipeline builder settings:

1

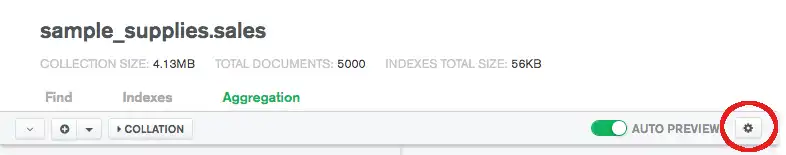

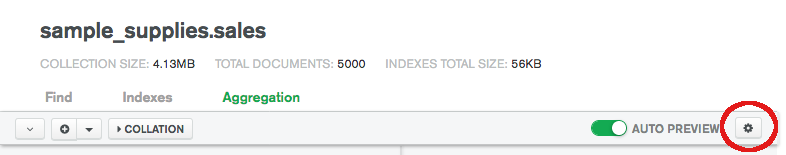

Screenshot highlighting pipeline settings button.
2

You can modify the following settings:

Setting
Description
Default
Comment Mode

When enabled, the Data Explorer adds helper comments to each stage.

Changing this setting only affects new stages and does not modify stages which have already been added to your pipeline.

On
Number of Preview Documents
Number of documents to show in the preview for each stage.
20
3
