Connect from Tableau Desktop with Authentication and TLS/SSL

Download and install the MongoDB BI Connector ODBC Driver.

Download the MongoDB BI Connector ODBC Driver and run the Windows installer (.msi).

Create a system DSN.

To securely connect Tableau to the BI Connector, a system DSN configured to use the MongoDB BI Connector ODBC Driver is required. To create a system DSN, follow the steps below:

1. Start the Microsoft ODBC Data Sources program.

   Choose the program version (64-bit or 32-bit) which is appropriate for your system and ODBC driver version.

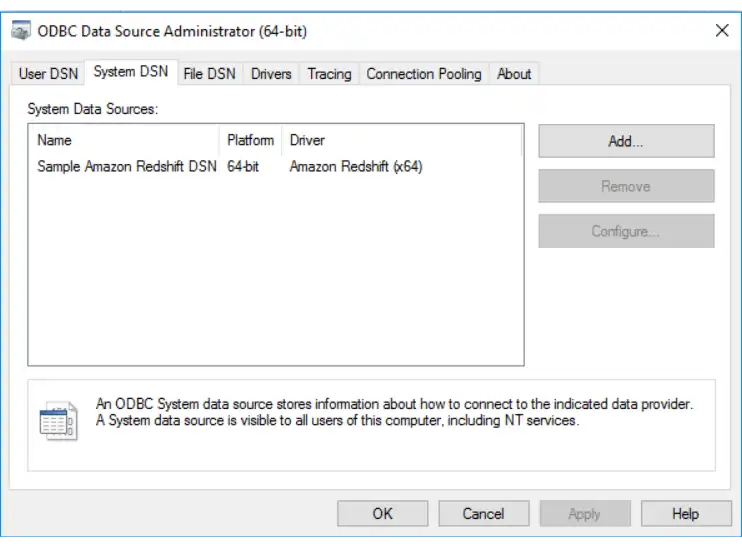

2. Select the System DSN tab.

3. Click the Add button.



   click to enlarge

4. Select a MongoDB BI Connector ODBC Driver from the list of available drivers.

   Select either the MongoDB ODBC ANSI Driver or the MongoDB ODBC Unicode Driver, then click OK.

   Note

   The ANSI ODBC driver offers maximum performance but has a limited character set. The Unicode ODBC driver supports a wider character set but may be slightly less performant as a result.

5. Fill in the necessary form fields.

   Click the Details button to expose the lower half of the form.

   The following form fields are required:

   Field Name	Description
   Data Source Name	A name of your choice.
   TCP/IP Server	Address of the server where your mongosqld process is running. If you have enabled BI Connector on MongoDB Atlas, you can find the hostname of the server where mongosqld is running in the connection information for your cluster.
   Port	Port number of your mongosqld process.
   Database	The name of the database to connect to, e.g. test.

6. (Optional) If authentication is enabled, provide connection information.

   The following fields are required when running with --auth enabled or when connecting to an BI Connector for Atlas instance.

   Field Name	Description
   User	Username of the MongoDB user who is authenticated to use your target database. You can specify the following authentication options after your username as URI-style query parameters: Connection Option Description source Specify the name of the database which stores the user's credentials. If you do not specify this option, the MongoDB Connector for BI will default to the current database associated with the MySQL connection. For authentication mechanisms such as PLAIN (LDAP) or GSSAPI (Kerberos) that delegate credential storage to other services, set the source value to $external. Not required if defaultSource is set in your MongoDB Connector for BI configuration file. mechanism Specify the mechanism that the MongoDB Connector for BI should use to authenticate the connection. Accepted values include: SCRAM-SHA-1 (default) SCRAM-SHA-256 PLAIN (LDAP SASL) GSSAPI (Kerberos) LDAP and Kerberos require MongoDB Enterprise. Set the source to $external when using LDAP or Kerberos. Not required if defaultMechanism is set in your MongoDB Connector for BI configuration file. X.509 is not supported. Username and Password LDAP Kerberos For example, to authenticate as user grace using the admin database and the Challenge and Response (SCRAM-SHA-1) authentication mechanism, write the username in this format: grace?source=admin For example, to authenticate as user grace with the LDAP (PLAIN) authentication mechanism, write the username in this format: grace?mechanism=PLAIN&source=$external For example, to authenticate as user grace on the EXAMPLE.COM Kerberos realm with the Kerberos authentication mechanism, write the username in this format: grace@EXAMPLE.COM?mechanism=GSSAPI&source=$external For more information about Kerberos configuration, see Configure Kerberos for BI Connector.
   Password	The authenticated user's password. You can't use curly braces ({ }) in your database password because these are special characters in the ODBC driver.
   Authentication	The default authentication method. When using the MongoDB BI Connector ODBC Driver, this field is not required. To use the authentication plugin in conjunction with another ODBC driver, fill in this field with the string mongosql_auth.

7. (Optional) If TLS/SSL is enabled, fill in the TLS/SSL form fields.

   Access the TLS/SSL form fields by clicking Details >>, then the SSL tab. The following parameters are available and may be required, depending on your TLS/SSL configuration:

   Field Name	Description
   SSL Key	The location of the client/server key file.
   SSL Cert	The location of the client/server certificate file.
   SSL CA File	The location of the file containing a list of trusted certificate authorities.
   SSL Cipher	The location of the file containing a list of permitted ciphers.
   SSL Mode	Set to REQUIRED to require an encrypted channel. If an encyrpted channel is not provided, the connection fails.
   RSA Public Key	The location of the PEM file that contains the RSA public key.

   Note

   The BI Connector for Atlas uses TLS/SSL but does not require any TLS/SSL settings to be configured in your system DSN.

8. Click the Test button to test the ODBC connection.

   If the connection is successful, click OK to add the DSN. If the connection fails, check to make sure your MongoDB user is correctly authenticated for the database named in the connection.

Start Tableau.

Start the Tableau Desktop application or restart it if it is already running.

Connect using Tableau.

1. In the left-side navigation under To a server, click on More... then click Other Databases (ODBC).

2. From the Other Databases (ODBC) dialog box, select your DSN from the dropdown and click Connect.

3. Once the connection test completes, click Sign In.

Download and install the MongoDB BI Connector ODBC Driver.

Download the MongoDB BI Connector ODBC Driver and run the macOS installer (.dmg).

Create a system DSN.

To securely connect Tableau to the BI Connector, a system DSN configured to use the MongoDB BI Connector ODBC Driver is required. To create a system DSN, follow the steps below:

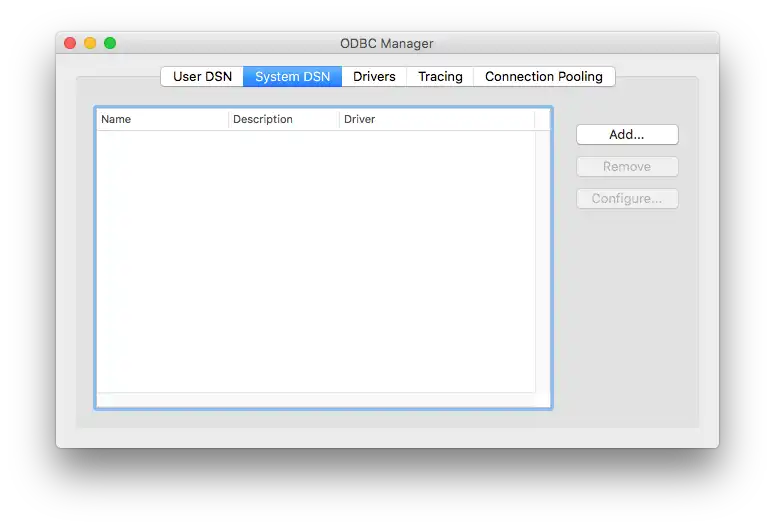

1. Launch ODBC Manager.

   Note

   ODBC Manager is included with the MongoDB BI Connector ODBC Driver.

   Important

   The 1.0.16 edition of ODBC Manager included with the MongoDB BI Connector ODBC Driver is not compatible with macOS Catalina or later versions of macOS. If you are on Catalina or a later version of macOS, download and install the latest version (1.0.19) of ODBC manager.

2. Click System DSN, then click Add.



3. Select a MongoDB BI Connector ODBC Driver from the list of available drivers.

   Select either the MongoDB ANSI ODBC driver or the MongoDB Unicode ODBC driver, then click OK.

   Note

   The ANSI ODBC driver offers maximum performance but has a limited character set. The Unicode ODBC driver supports a wider character set but may be slightly less performant as a result.

4. Enter a Data Source Name (DSN).

   Optionally enter a Description.

   Note

   Do not close the setup window. Proceed to the next step.

5. Add the necessary keywords.

   1. Add a keyword value pair by clicking the Add button.

   2. Modify the Keyword by double-clicking on it, entering the desired keyword, then pressing enter.

   3. Modify the Value by double-clicking on it, entering the desired keyword, then pressing enter.

   Using the procedure above, add the following keywords:

   Keyword	Value
   SERVER	The hostname or IP address of the MongoDB Connector for BI host. IMPORTANT: Use 127.0.0.1 to connect using TCP to localhost. If you specify a value other than an IP address, the BI Connector attempts to connect using Unix socket.
   PORT	The IANA port number for the MongoDB Connector for BI. The default is 3307.
   DATABASE	The database to use after connecting. You must use this keyword when connecting with Microsoft Excel.

   For the complete list of ODBC parameters, see Connector/ODBC Connection Parameters.

   For example, your user DSN configuration should look similar to the following:



   Note

   Do not close the setup window. Proceed to the next step.

6. Add the authentication keywords.

   1. Add a keyword value pair by clicking the Add button.

   2. Modify the Keyword by double-clicking on it, entering the desired keyword, then pressing enter.

   3. Modify the Value by double-clicking on it, entering the desired keyword, then pressing enter.

   Using the procedure above, add the following keywords:

   Keyword	Value
   UID	The username for the user that can access the active MongoDB Connector for BI database. You can specify the following authentication options after your username as URI-style query parameters: Connection Option Description source Specify the name of the database which stores the user's credentials. If you do not specify this option, the MongoDB Connector for BI will default to the current database associated with the MySQL connection. For authentication mechanisms such as PLAIN (LDAP) or GSSAPI (Kerberos) that delegate credential storage to other services, set the source value to $external. Not required if defaultSource is set in your MongoDB Connector for BI configuration file. mechanism Specify the mechanism that the MongoDB Connector for BI should use to authenticate the connection. Accepted values include: SCRAM-SHA-1 (default) SCRAM-SHA-256 PLAIN (LDAP SASL) GSSAPI (Kerberos) LDAP and Kerberos require MongoDB Enterprise. Set the source to $external when using LDAP or Kerberos. Not required if defaultMechanism is set in your MongoDB Connector for BI configuration file. X.509 is not supported. Username and Password LDAP Kerberos For example, to authenticate as user grace using the admin database and the Challenge and Response (SCRAM-SHA-1) authentication mechanism, write the username in this format: grace?source=admin For example, to authenticate as user grace with the LDAP (PLAIN) authentication mechanism, write the username in this format: grace?mechanism=PLAIN&source=$external For example, to authenticate as user grace on the EXAMPLE.COM Kerberos realm with the Kerberos authentication mechanism, write the username in this format: grace@EXAMPLE.COM?mechanism=GSSAPI&source=$external For more information about Kerberos configuration, see Configure Kerberos for BI Connector.
   PWD	The password associated with the UID. You can't use curly braces ({ }) in your database password because these are special characters in the ODBC driver.

   For the complete list of ODBC parameters, see Connector/ODBC Connection Parameters.

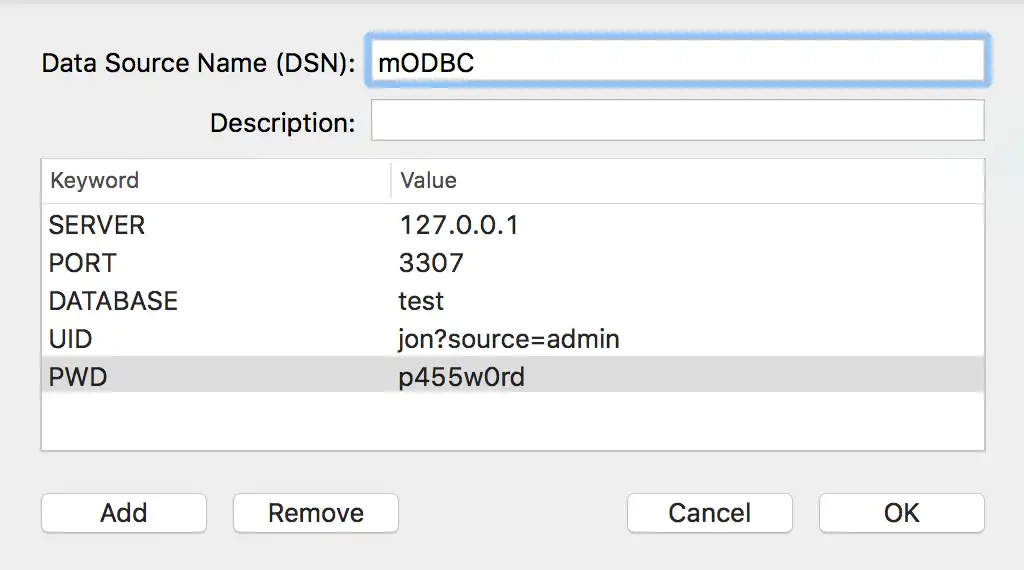

   For example, your user DSN configuration should look similar to the following:



7. Add the SSL keywords.

   1. Add a keyword value pair by clicking the Add button.

   2. Modify the Keyword by double-clicking on it, entering the desired keyword, then pressing enter.

   3. Modify the Value by double-clicking on it, entering the desired keyword, then pressing enter.

   Note

   The BI Connector for Atlas uses TLS/SSL but does not require any TLS/SSL settings to be configured in your system DSN.

   Using the procedure above, add the following keywords depending on your TLS/SSL configuration:

   Keyword	Value
   SSLKEY	The path to the .pem key file.
   SSLCERT	The path to the SSL certificate.
   SSLMODE	Set to REQUIRED.
   SSLCA	The path to the SSL certificate authority file.
   SSLCIPHER	The path to the file containing a list of permitted ciphers.
   RSAKEY	The path to the PEM file containing the RSA public key.
   ENABLE_CLEARTEXT_PLUGIN	Set to 1 to enable cleartext authentication.

   Note

   If you are connecting with Microsoft Excel, certificates must be located in the /Library/ODBC/ directory.

   For the complete list of ODBC parameters, see Connector/ODBC Connection Parameters.

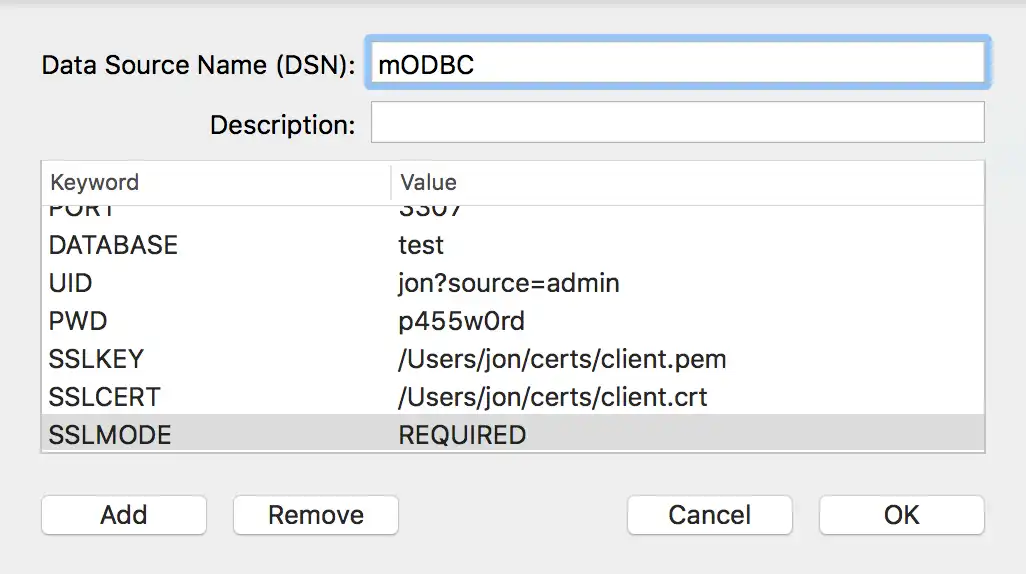

   For example, your user DSN configuration should look similar to the following:



8. Click OK to finish creating the DSN.

Start Tableau.

Start the Tableau Desktop application or restart it if it is already running.

Connect using Tableau.

1. In the left-side navigation under To a server, click on More... then click Other Databases (ODBC).

2. From the Other Databases (ODBC) dialog box, select your DSN from the dropdown and click Connect.

3. Once the connection test completes, click Sign In.
