Spirits in the Materialized View: Automatic Refresh of Materialized Views

When Views Started Being Materialized

MongoDB 4.2 introduced a highly anticipated feature in the form of the $merge stage, which essentially allows users to incrementally persist their aggregation outputs (views) into a targeted collection. This ability allows users to perform their calculations and data transformations offline from their online work by creating those Materialized Views.

This is a compelling addition to the MongoDB feature-set suite and I'd like to make it even more powerful by adding one piece to this puzzle, namely the ability to easily auto-refresh Materialized Views.

Now, this is where having your data on MongoDB Atlas and taking advantage of MongoDB's Atlas Triggers comes in handy.

Atlas Triggers

With Scheduled Triggers, it is very easy to define the schedule of your choice either with the basic or advanced cron expression.

To better explain my idea let's consider the following “zoo” management application as an example. As part of this application we need to provide our end users with 2 digested datasets:

• budgets: The current/historical budget spent on salaries.
• quarterlyreport: An up to date report on the purchases.

The pipelines to build those are taken from our documentation examples:

# reporting.budgets
db.getSiblingDB("zoo").salaries.aggregate( [
   { $match : { fiscal_year:  { $gte : 2019 } } },
   { $group: { _id: { fiscal_year: "$fiscal_year", dept: "$dept" }, salaries: { $sum: "$salary" } } },
   { $merge : { into: { db: "reporting", coll: "budgets" }, on: "_id",  whenMatched: "replace", whenNotMatched: "insert" } }
] )

# zoo.quarterlyreport
db.purchaseorders.aggregate( [
   { $group: { _id: "$quarter", purchased: { $sum: "$qty" } } },  // group purchase orders by quarter
   { $merge : { into: "quarterlyreport", on: "_id",  whenMatched: "merge", whenNotMatched: "insert" } }
])

To create those Auto Refreshing Materialized Views the trigger will run a function every 5 minutes which will cause the needed $merge commands to run.

Now the cool part is that the database/collections and the associated Materialized Views can be defined in a MongoDB collection, making the solution flexible and dynamic:

use configurations;
db.5_min_mviews.find()
{
     sourceDatabase: "zoo",
     sourceCollection: "salaries",
     pipeline : "[...]",
     targetCollection : "budgets"
}

Trigger code

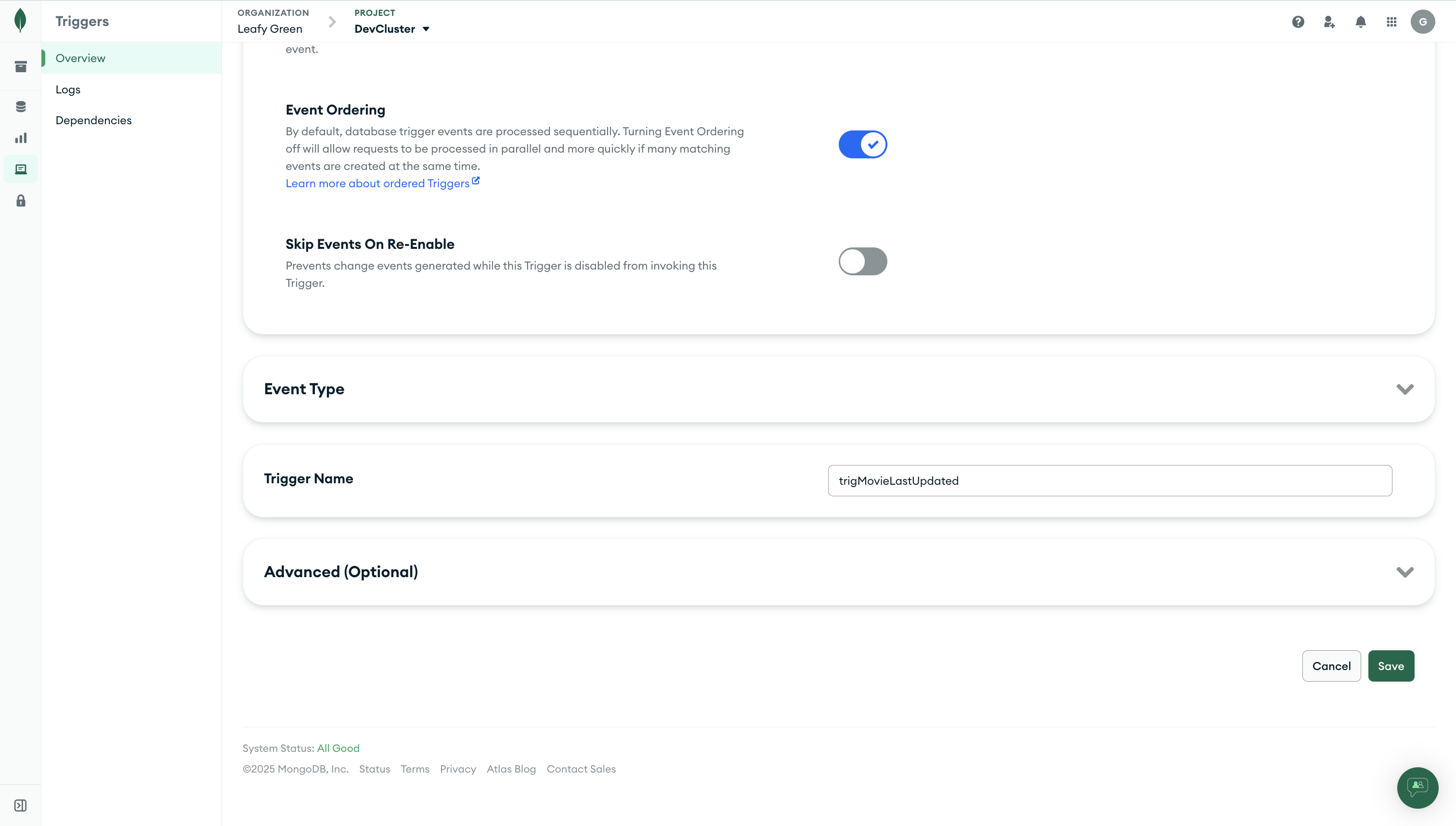

Creating the trigger is extremely easy with an intuitive UI.

Function Code

  exports =  function() {
   // Log a trigger start time
  var currDate = new Date();
  console.log('Trigger refreshMaterializedViews started at ' +  currDate.toString() );


  // Query  all the needed materialized Views from the configuration collection
  const materializedViews =  context.services.get("Cluster0").db("configurations").collection("5_min_mviews");
  materializedViews.find().toArray().then( viewsList =>
  {
    // Create an execution array of all the $merge commands
    var commandArray = [];
    viewsList.forEach(function(view){

        var collection = context.services.get("Cluster0").db(view.sourceDb).collection(view.sourceCollection);
        var pipeline = EJSON.parse(view.pipeline);
        commandArray.push(collection.aggregate(pipeline).toArray());
        console.log('Refreshed Materialized View: '+ view.targetCollection);
      });

  // Run all $merge in a promise to optimize their parallel run.
    Promise.all(commandArray).then(result => {
      currDate = new Date();
       console.log('Finished all refreshes at ' + currDate);
        }).catch( err => {
          console.error(err);
       });
  }).catch( err => {
          console.error(err)});
};

As a result, we have all the target collections refreshed according to the configured pipelines in the configurations.5_min_mviews collection.

The code grabs all the configurations from configurations.5_min_mviews collection, and builds a Promise.all execution statements to perform each pipeline queried. Once all statements are executed in parallel, we will end up with a refresh of the Materialized Views.

Using this strategy, we can use a similar code and classify our mviews with different configurations consumed at different time intervals with a dedicated trigger.

Materialized Views Configuration & Run Results

I’ve placed the needed pipelines inside the following configuration documents:

{
"sourceDb":"zoo",
"sourceCollection":"salaries",
"pipeline":"[    { \"$group\": { \"_id\": { \"fiscal_year\": \"$fiscal_year\",    \"dept\": \"$dept\" },
\"salaries\": { \"$sum\": \"$salary\" } } },    { \"$merge\" : { \"into\": { \"db\": \"reporting\", \"coll\": \"budgets\" },
 \"on\": \"_id\",
 \"whenMatched\": \"replace\",
\"whenNotMatched\": \"insert\" } } ]"
},
{
"sourceDb":"zoo",
"sourceCollection":"purcheseorders",
"pipeline":"[ { \"$group\": { "_id\": \"$quarter\", \"purchased\": { \"$sum\": \"$qty\" } } },
   { \"$merge\" : { \"into\": \"quarterlyreport\",
     \"on\": \"_id\",
      \"whenMatched\": \"merge\",
      \"whenNotMatched\" : \"insert\" } }]"

This will result in 2 Materialized views :

• Reporting.budgets - Which will be derived from the “zoo.salaries” collection and will have the yearly budget spent on salaries,
• Zoo.quarterlyreport - Which will be derived from the “zoo.purcheseorders” collection and will have a quarterly purchase report.

Our trigger will sync those target collections each 5 min and logged output should be:

[
  "Trigger refreshMaterializedViews started at Thu, 30 Jan 2020 08:10:00 UTC",
  "Refreshed Materialized View: budgets",
  "Refreshed Materialized View: quarterlyreport",
  "Finished all refreshes at Thu, 30 Jan 2020 08:10:00 UTC"
]

Wow! That's it! All of our views are updated in parallel and will continue to do so every 5 min, and we can now start consuming them for our BI tools or MongoDB Charts.

Our applications can ingest new configurations to our configurations.5_min_mviews collection and the trigger will just automatically pick them up and execute.

Wrapping Up

Atlas offers a BI Connector and Charts components to help you consume your digested materialized views and make instant values out of them. Closing this loop proves how MongoDB and Atlas make data stunningly easy to work with.
