MongoDB6.0.5 TimeSeries collection shard migration failed

Ops and Admin Sharding
, ,
1

My MongoDB sharded cluster consists of two shards, rs0 and rs1, each with two nodes, one primary and one secondary (originally three nodes, but one was temporarily removed for performance reasons). The issue is that even after the insert operation has completed, rs1(shard1) continues to execute insert operations. The logs show that rs1(shard1) is performing a shard migration, but it has not been successful over and over again. Here are the specific reference details:

MongoDB version is 6.0.5
MongoDB Client: Mongocxx driver v3.7.1(with mongoc driver v1.23.2)

Command used to create the time-series collection:

sh.shardCollection(
  "ds.KLineTrade_10min",
  {"MetaData.MarketID":1, "MetaData.NameID":1, "MetaData.BidAsk": 1, "Time":1},
  {
    timeseries: {
      timeField: "Time",
      metaField: "MetaData",
      granularity: "seconds"
    }
  }
)

Example data:

{
  "_id" : ObjectId("6049b848242c00005e005cb3"),
  "Time" : 2021-04-21T05:00:00.000+00:00, // Date
  "MetaData":
  {
    "MarketID" : 0, // int32
    "NameID": 1, // int32
    "BidAsk": 0 // int32, 0: 1-level quote, 1: 5-level quote
  },
  "Open": 123.34, // double
  "Close": 123.2, // double
  "High": 123, // double
  "Low": 1.2, // double
  "Volume": 123.1, // double
  "Opi": 122.1, // double
  "AVPrice": 12.1, // double
  "Scale": 0.5 // double
}

Error log:

{"t":{"$date":"2023-04-25T03:39:04.287+08:00"},"s":"I",  "c":"SH_REFR",  "id":4619901, "ctx":"CatalogCache-7850","msg":"Refreshed cached collection","attr":{"namespace":"ds.system.buckets.KLineTrade_30min","lookupSinceVersion":"13|1||64468e997daa9be5ee619980||Timestamp(1682345625, 41)","newVersion":"{ chunkVersion: { t: Timestamp(1682345625, 41), e: ObjectId('64468e997daa9be5ee619980'), v: Timestamp(13, 1) }, forcedRefreshSequenceNum: 269733, epochDisambiguatingSequenceNum: 269668 }","timeInStore":"{ chunkVersion: \"None\", forcedRefreshSequenceNum: 269732, epochDisambiguatingSequenceNum: 269667 }","durationMillis":2}}
{"t":{"$date":"2023-04-25T03:39:04.287+08:00"},"s":"I",  "c":"SHARDING", "id":5087102, "ctx":"conn112710","msg":"Recipient failed to copy oplog entries for retryable writes and transactions from donor","attr":{"namespace":"ds.system.buckets.KLineTrade_10min","migrationSessionId":"rs0_rs1_6446dacb7daa9be5ee17e06c","fromShard":"rs0","error":"Destructor cleaning up thread"}}
{"t":{"$date":"2023-04-25T03:39:04.288+08:00"},"s":"I",  "c":"MIGRATE",  "id":22000,   "ctx":"migrateThread","msg":"Starting receiving end of chunk migration","attr":{"chunkMin":{"meta.MarketID":0,"meta.NameID":11064,"meta.BidAsk":1,"control.min.Time":{"$date":"2020-11-17T01:00:00.000Z"}},"chunkMax":{"meta.MarketID":0,"meta.NameID":11276,"meta.BidAsk":1,"control.min.Time":{"$date":"2018-03-16T01:00:00.000Z"}},"namespace":"ds.system.buckets.KLineTrade_30min","fromShard":"rs0","epoch":{"$oid":"64468e997daa9be5ee619980"},"sessionId":"rs0_rs1_6446dad87daa9be5ee17e172","migrationId":{"uuid":{"$uuid":"db42e46f-ca26-453f-9290-cbae2139a93a"}}}}
{"t":{"$date":"2023-04-25T03:39:04.292+08:00"},"s":"I",  "c":"CONNPOOL", "id":22576,   "ctx":"ShardRegistry","msg":"Connecting","attr":{"hostAndPort":"shard0-primary.mg.com:23450"}}
{"t":{"$date":"2023-04-25T03:39:05.289+08:00"},"s":"I",  "c":"COMMAND",  "id":51803,   "ctx":"conn112710","msg":"Slow query","attr":{"type":"command","ns":"admin.$cmd","command":{"_recvChunkStatus":"ds.system.buckets.KLineTrade_30min","waitForSteadyOrDone":true,"sessionId":"rs0_rs1_6446dad87daa9be5ee17e172","$clusterTime":{"clusterTime":{"$timestamp":{"t":1682365144,"i":5}},"signature":{"hash":{"$binary":{"base64":"crIebqqm/pL9InFc9MaG9wQGCqY=","subType":"0"}},"keyId":7163442577083990019}},"$configTime":{"$timestamp":{"t":1682365144,"i":2}},"$topologyTime":{"$timestamp":{"t":0,"i":1}},"$db":"admin"},"numYields":0,"reslen":853,"locks":{},"remote":"<ip_addr>:60426","protocol":"op_msg","durationMillis":1000}}
{"t":{"$date":"2023-04-25T03:39:06.084+08:00"},"s":"I",  "c":"MIGRATE",  "id":21999,   "ctx":"batchApplier","msg":"Batch application failed","attr":{"error":"DuplicateKey{ keyPattern: { _id: 1 }, keyValue: { _id: ObjectId('5e6adb107db2a2e5ee632b22') } }: Insert of { _id: ObjectId('5e6adb107db2a2e5ee632b22'), control: { version: 2, min: { _id: ObjectId('64469f35db1f646f8c56b871'), Time: new Date(1584061200000), Open: 7.699999809265137, Close: 8.260000228881836, High: 8.279999732971191, Low: 7.690000057220459, Volume: 2180056.0, Opi: 88467440.0, AVPrice: 7.971197605133057, Scale: 0.3896368145942688 }, max: { _id: ObjectId('64469f35db1f646f8c56b878'), Time: new Date(1584081000000), Open: 8.510000228881836, Close: 8.5, High: 8.640000343322754, Low: 8.399999618530273, Volume: 11104572.0, Opi: 273989728.0, AVPrice: 8.545262336730957, Scale: 0.636924147605896 }, count: 8 }, meta: { BidAsk: 1, MarketID: 0, NameID: 11142 }, data: { Time: BinData(7, 0900C02D83D170010000830DE86E03000000000D000000002E9302FDB74C0A000000000E0000000000000000), Volume: BinData(7, 010000000080272E6541937D76A00D10BA0D00BD243C02D08505003D930A005CDF5A008EA6D3010000000000), _id: BinData(7, 070064469F35DB1F646F8C56B87180080200000000000000), Scale: BinData(7, 0100000000C0AE61E43F86FEFFFFFFBB811D000E000000D06E0800FEFFFFFF47A53B00FEFFFFFF2B5559000E00000078D05300FEFFFFFF2BC37F00FEFFFFFFDB3B980000), High: BinData(7, 0100000000205C8F2040856800000070C4F5080E0000007C140E00FEFFFFFF0BD703000E00000034330300FEFFFFFF67660600FEFFFFFFAB47010000), Opi: BinData(7, 0100000000C09F179541930DB99B3D406A15100D62D82E8096F10B0D6EAA2F801FCD080E046C320000000000), Low: BinData(7, 0100000000608FC21E40846887999982295C0068475C8F705C8F020E00000064660600FEFFFFFF2F330300FEFFFFFFAF47010000), AVPrice: BinData(7, 0100000000A081E21F408468C721DC70A41F086818AE0B70D82E020E000000B8D60200FEFFFFFF47130500FEFFFFFF3BB8020000), Close: BinData(7, 0100000000205C8F204085FEFFFFFFAB4701000E000000C0F50800FEFFFFFF6366060068879999705C8F020E000000D8A30000FEFFFFFF13AE070000), Open: BinData(7, 0100000000C0CCCC1E40850E000000EC513800FEFFFFFFAB4701000E000000EC510800FEFFFFFF8FC2050068C8F508703433030E000000B047010000) } } failed. :: caused by :: E11000 duplicate key error collection: ds.system.buckets.KLineTrade_30min dup key: { _id: ObjectId('5e6adb107db2a2e5ee632b22') }"}}
{"t":{"$date":"2023-04-25T03:39:06.084+08:00"},"s":"I",  "c":"CONNPOOL", "id":22566,   "ctx":"ShardRegistry","msg":"Ending connection due to bad connection status","attr":{"hostAndPort":"shard0-primary.mg.com:23450","error":"CallbackCanceled: Callback was canceled","numOpenConns":1}}
{"t":{"$date":"2023-04-25T03:39:06.084+08:00"},"s":"I",  "c":"SHARDING", "id":22080,   "ctx":"migrateThread","msg":"About to log metadata event","attr":{"namespace":"changelog","event":{"_id":"SHDX-I7-73:23450-2023-04-25T03:39:06.084+08:00-6446dada9394fa0f1351f214","server":"SHDX-I7-73:23450","shard":"rs1","clientAddr":"","time":{"$date":"2023-04-24T19:39:06.084Z"},"what":"moveChunk.to","ns":"ds.system.buckets.KLineTrade_30min","details":{"step 1 of 8":1,"step 2 of 8":0,"step 3 of 8":2,"min":{"meta.MarketID":0,"meta.NameID":11064,"meta.BidAsk":1,"control.min.Time":{"$date":"2020-11-17T01:00:00.000Z"}},"max":{"meta.MarketID":0,"meta.NameID":11276,"meta.BidAsk":1,"control.min.Time":{"$date":"2018-03-16T01:00:00.000Z"}},"to":"rs1","from":"rs0","note":"aborted"}}}}
{"t":{"$date":"2023-04-25T03:39:06.103+08:00"},"s":"I",  "c":"MIGRATE",  "id":21998,   "ctx":"migrateThread","msg":"Error during migration","attr":{"error":"migrate failed: Location51008: _migrateClone failed:  :: caused by :: operation was interrupted"}}
{"t":{"$date":"2023-04-25T03:39:06.104+08:00"},"s":"I",  "c":"SHARDING", "id":5087102, "ctx":"migrateThread","msg":"Recipient failed to copy oplog entries for retryable writes and transactions from donor","attr":{"namespace":"ds.system.buckets.KLineTrade_30min","migrationSessionId":"rs0_rs1_6446dad87daa9be5ee17e172","fromShard":"rs0","error":"migrate failed: Location51008: _migrateClone failed:  :: caused by :: operation was interrupted"}}
{"t":{"$date":"2023-04-25T03:39:06.104+08:00"},"s":"I",  "c":"COMMAND",  "id":51803,   "ctx":"conn112710","msg":"Slow query","attr":{"type":"command","ns":"admin.$cmd","command":{"_recvChunkStatus":"ds.system.buckets.KLineTrade_30min","waitForSteadyOrDone":true,"sessionId":"rs0_rs1_6446dad87daa9be5ee17e172","$clusterTime":{"clusterTime":{"$timestamp":{"t":1682365145,"i":14082}},"signature":{"hash":{"$binary":{"base64":"tNt3TIhZF2HtKCEhbfHI8f0kDaY=","subType":"0"}},"keyId":7163442577083990019}},"$configTime":{"$timestamp":{"t":1682365144,"i":2}},"$topologyTime":{"$timestamp":{"t":0,"i":1}},"$db":"admin"},"numYields":0,"reslen":960,"locks":{},"remote":"<ip_addr>:60426","protocol":"op_msg","durationMillis":814}}
{"t":{"$date":"2023-04-25T03:39:06.104+08:00"},"s":"I",  "c":"MIGRATE",  "id":5004703, "ctx":"migrateThread","msg":"clearReceiveChunk ","attr":{"currentKeys":"[{ meta.MarketID: 0, meta.NameID: 11064, meta.BidAsk: 1, control.min.Time: new Date(1605574800000) }, { meta.MarketID: 0, meta.NameID: 11276, meta.BidAsk: 1, control.min.Time: new Date(1521162000000) })"}}
{"t":{"$date":"2023-04-25T03:39:06.122+08:00"},"s":"I",  "c":"MIGRATE",  "id":22026,   "ctx":"range-deleter","msg":"Submitting range deletion task","attr":{"deletionTask":{"_id":{"$uuid":"db42e46f-ca26-453f-9290-cbae2139a93a"},"nss":"ds.system.buckets.KLineTrade_30min","collectionUuid":{"$uuid":"ec1c91b4-e024-4a50-9edc-45dc9873ee18"},"donorShardId":"rs0","range":{"min":{"meta.MarketID":0,"meta.NameID":11064,"meta.BidAsk":1,"control.min.Time":{"$date":"2020-11-17T01:00:00.000Z"}},"max":{"meta.MarketID":0,"meta.NameID":11276,"meta.BidAsk":1,"control.min.Time":{"$date":"2018-03-16T01:00:00.000Z"}}},"whenToClean":"now","timestamp":{"$timestamp":{"t":1682365144,"i":5}},"numOrphanDocs":63381},"migrationId":{"uuid":{"$uuid":"db42e46f-ca26-453f-9290-cbae2139a93a"}}}}
{"t":{"$date":"2023-04-25T03:39:06.122+08:00"},"s":"I",  "c":"MIGRATE",  "id":21990,   "ctx":"range-deleter","msg":"Scheduling deletion of the collection's specified range","attr":{"namespace":"ds.system.buckets.KLineTrade_30min","range":"[{ meta.MarketID: 0, meta.NameID: 11064, meta.BidAsk: 1, control.min.Time: new Date(1605574800000) }, { meta.MarketID: 0, meta.NameID: 11276, meta.BidAsk: 1, control.min.Time: new Date(1521162000000) })"}}
{"t":{"$date":"2023-04-25T03:39:07.830+08:00"},"s":"E",  "c":"SHARDING", "id":6419611, "ctx":"range-deleter","msg":"Cached orphan documents count became negative, resetting it to 0","attr":{"collectionUUID":{"uuid":{"$uuid":"ec1c91b4-e024-4a50-9edc-45dc9873ee18"}},"numOrphanDocs":-816,"delta":-64197,"numRangeDeletionTasks":1}}
2

Hi team!

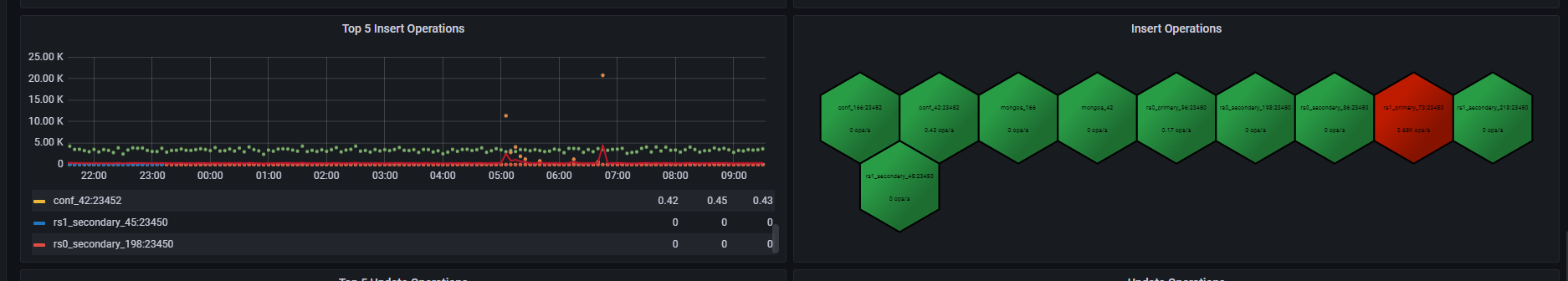

I tried setting retryWrites=false, but the sharding still remains imbalanced. I have a large amount of data to insert, with each of the 20 collections having billions of documents and different time aggregation granularities. From the monitoring, it can be seen that rs1 (shard1) has been executing many insert operations.

微信截图_20230426093312
微信截图_202304260933121874×336 70.9 KB

And here is a part result of “sh.stats()”:

'ds.system.buckets.KLineTrade_1h': {
        shardKey: {
          'meta.MarketID': 1,
          'meta.NameID': 1,
          'meta.BidAsk': 1,
          'control.min.Time': 1
        },
        unique: false,
        balancing: true,
        chunkMetadata: [
          {
            shard: 'rs0',
            nChunks: 1
          },
          {
            shard: 'rs1',
            nChunks: 4
          }
        ],
        chunks: [
          {
            min: {
              'meta.MarketID': MinKey(),
              'meta.NameID': MinKey(),
              'meta.BidAsk': MinKey(),
              'control.min.Time': MinKey()
            },
            max: {
              'meta.MarketID': 0,
              'meta.NameID': 927,
              'meta.BidAsk': 1,
              'control.min.Time': 2022-09-07T00:00:00.000Z
            },
            'on shard': 'rs1',
            'last modified': Timestamp({ t: 2, i: 0 })
          },
          {
            min: {
              'meta.MarketID': 0,
              'meta.NameID': 927,
              'meta.BidAsk': 1,
              'control.min.Time': 2022-09-07T00:00:00.000Z
            },
            max: {
              'meta.MarketID': 0,
              'meta.NameID': 10302,
              'meta.BidAsk': 1,
              'control.min.Time': 2018-12-07T00:00:00.000Z
            },
            'on shard': 'rs1',
            'last modified': Timestamp({ t: 3, i: 0 })
          },
          {
            min: {
              'meta.MarketID': 0,
              'meta.NameID': 10302,
              'meta.BidAsk': 1,
              'control.min.Time': 2018-12-07T00:00:00.000Z
            },
            max: {
              'meta.MarketID': 0,
              'meta.NameID': 10532,
              'meta.BidAsk': 1,
              'control.min.Time': 2023-02-08T00:00:00.000Z
            },
            'on shard': 'rs1',
            'last modified': Timestamp({ t: 4, i: 0 })
          },
          {
            min: {
              'meta.MarketID': 0,
              'meta.NameID': 10532,
              'meta.BidAsk': 1,
              'control.min.Time': 2023-02-08T00:00:00.000Z
            },
            max: {
              'meta.MarketID': 0,
              'meta.NameID': 10826,
              'meta.BidAsk': 1,
              'control.min.Time': 2018-12-26T00:00:00.000Z
            },
            'on shard': 'rs1',
            'last modified': Timestamp({ t: 5, i: 0 })
          },
          {
            min: {
              'meta.MarketID': 0,
              'meta.NameID': 10826,
              'meta.BidAsk': 1,
              'control.min.Time': 2018-12-26T00:00:00.000Z
            },
            max: {
              'meta.MarketID': MaxKey(),
              'meta.NameID': MaxKey(),
              'meta.BidAsk': MaxKey(),
              'control.min.Time': MaxKey()
            },
            'on shard': 'rs0',
            'last modified': Timestamp({ t: 5, i: 1 })
          }
        ],
        tags: []
      },
4

Hello :wave: @Tong_Zhang2,

Welcome to the MongoDB Community forums :sparkles:

The number of chunks created depends on the configured chunk size. After the initial chunk creation, the balancer migrates these initial chunks across the shards as appropriate as well as manages the chunk distribution. Please refer to this Initial Chunks docs for more details.

The error message in the shared logs indicates that a duplicate key error occurred during the batch migration of the buckets.

I believe you’re seeing the effect of SERVER-76554, which is a known issue. There are currently efforts to fix this, but there is a workaround that may be helpful in your use case.

    const problemBucketId = ObjectId('5e6adb107db2a2e5ee632b22');

    // Ensure that this returned two bucket objects.
    const problemBuckets = db["system.buckets.KLineTrade_30min"].aggregate([{$match: {_id: problemBucketId}}]).toArray();

    // Save the measurements corresponding to the buckets.
    const problemMeasurements = db["system.buckets.KLineTrade_30min"].aggregate([{$match: {_id: problemBucketId}}, {$_unpackBucket: {timeField: "recordStartDate", metaField: "mdn"}}]).toArray();
    print(problemMeasurements);

    // Delete the two buckets.
    db["system.buckets.KLineTrade_30min"].deleteMany({_id: problemBucketId});

    // Re-insert the buckets to create new buckets with different Object Ids.
    db["KLineTrade_30min"].insertMany(problemMeasurements);

Note that this workaround requires you to modify internal collections, and should be executed with great care, with the data backed up just in case something went wrong.

I hope it helps!

Best,
Kushagra
