Sharded Cluster Components

On this page

  • Production Configuration
  • Development Configuration

A MongoDB sharded cluster consists of the following components:

  • shard: Each shard contains a subset of the sharded data. As of MongoDB 3.6, shards must be deployed as a replica set.

  • mongos: The mongos acts as a query router, providing an interface between client applications and the sharded cluster. Starting in MongoDB 4.4, mongos can support hedged reads to minimize latencies.

  • config servers: Config servers store metadata and configuration settings for the cluster. As of MongoDB 3.4, config servers must be deployed as a replica set (CSRS).

In a production cluster, ensure that data is redundant and that your systems are highly available. Consider the following for a production sharded cluster deployment:

Where possible, consider deploying one member of each replica set in a site suitable for being a disaster recovery location.

Note

Distributing replica set members across two data centers provides benefit over a single data center. In a two data center distribution,

  • If one of the data centers goes down, the data is still available for reads unlike a single data center distribution.

  • If the data center with a minority of the members goes down, the replica set can still serve write operations as well as read operations.

  • However, if the data center with the majority of the members goes down, the replica set becomes read-only.

If possible, distribute members across at least three data centers. For config server replica sets (CSRS), the best practice is to distribute across three (or more depending on the number of members) centers. If the cost of the third data center is prohibitive, one distribution possibility is to evenly distribute the data bearing members across the two data centers and store the remaining member in the cloud if your company policy allows.

Sharding requires at least two shards to distribute sharded data. Single shard sharded clusters may be useful if you plan on enabling sharding in the near future, but do not need to at the time of deployment.

Deploying multiple mongos routers supports high availability and scalability. For shard-level high availability, a common pattern is to place mongos instances on the same hardware that mongod instances are already running on. Another option is to embed mongos routers with application tier infrastructure.

There is no limit to the number of mongos routers you can have in a deployment. However, as mongos routers communicate frequently with your config servers, monitor config server performance closely as you increase the number of routers. If you see performance degradation, it may be beneficial to cap the number of mongos routers in your deployment.

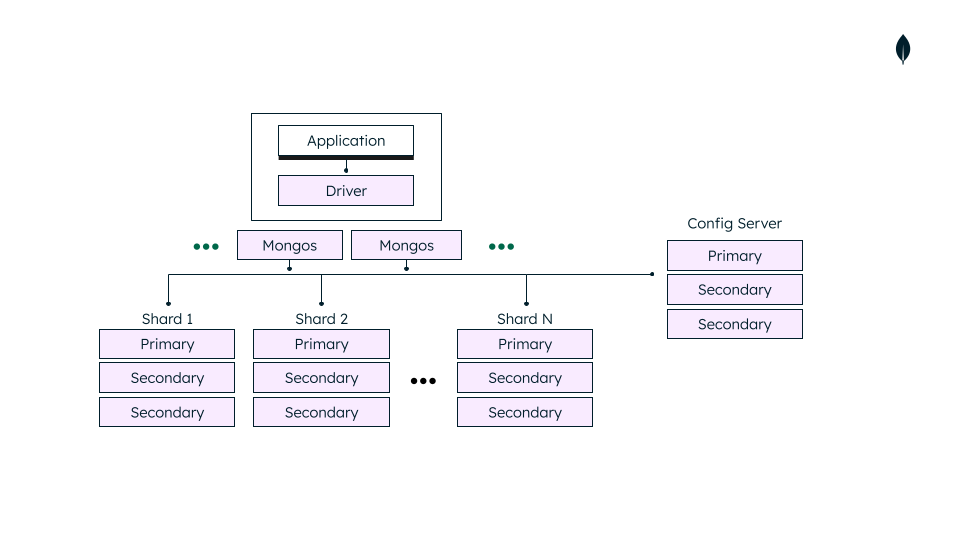

The following diagram shows a common sharded cluster architecture used in production:

Diagram that shows a production-level sharded cluster
containing multiple shards and mongos routers.

For testing and development, you can deploy a sharded cluster with a minimum number of components. These non-production clusters have the following components:

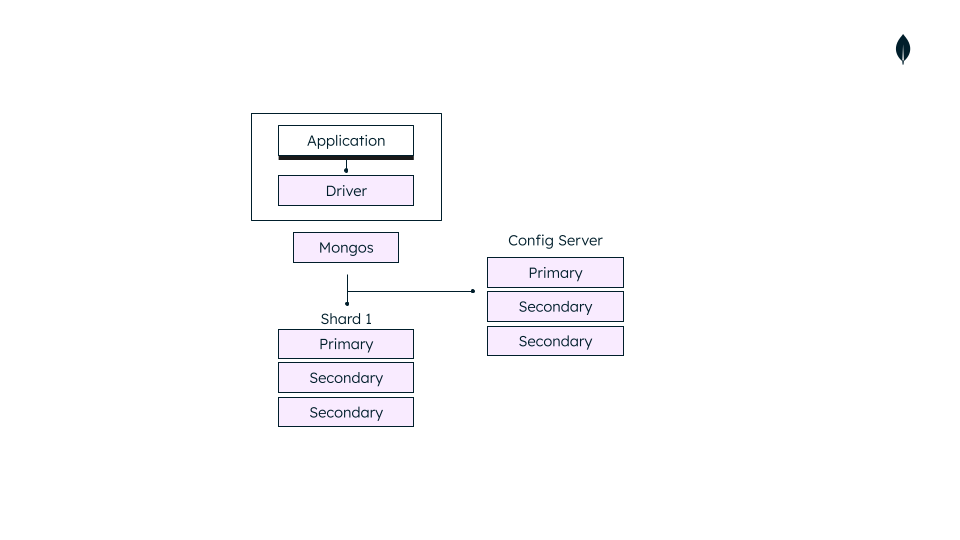

The following diagram shows a sharded cluster architecture used for development only:

Diagram that shows a development sharded cluster
containing a single shard and mongos router.

Warning

Use the test cluster architecture for testing and development only.

Tip

See also:

←  ShardingShards →
