Single MongoDB instance crashes with reportOutOfMemoryError

Hi all,

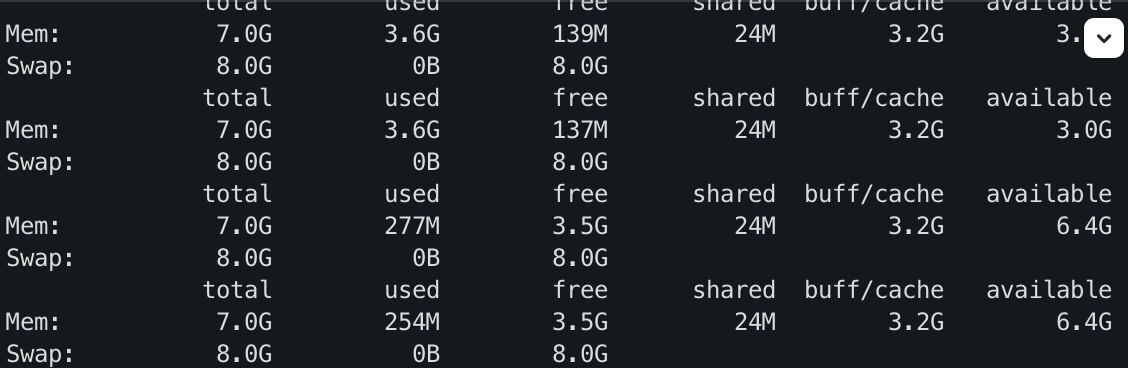

I am running a single instance of MongoDB 5.0.5 on a Virtual Machine running CentOS7 with 8Gb of RAM available. The machine is expected to receive a large number of connection and as I have learnt from here MongoDB roughly allocates 1Mb of memory per created connection, i.e. giving me a rough estimate of ~7000 max connections for the single instance. Is this reasoning correct? I noticed quickly that adding much more connection than that quickly leads to OOM kills. Adding a swap space prevents the OOM kills, but leads to DB crashes once too much memory is allocated on the swap. While I guess this is expected behaviour in the case of having >7000 connections, I am also seeing DB instabilities for far less connections (in the order of 4000) which should not lead to any problems as far as I can tell. Specifically, the database seems to become unreachable, even though enough memory seems to be available as can be seen in this free -h display:

The crash happens when there is still around 3Gb available, after wich the memory seems to be freed again. I also checked the number of available connections, but this also seems to be more than enough. In the /var/log/mongodb/mongod.log file I get the following BACKTRACE:

{"t":{"$date":"2022-01-07T02:11:19.677+01:00"},"s":"I",  "c":"CONTROL",  "id":31380,   "ctx":"conn14209","msg":"BACKTRACE","attr":{"bt":{"backtrace":[{"a":"55C16D6730D5","b":"55C16980D000","o":"3E660D5","s":"_ZN5mongo18stack_trace_detail12_GLOBAL__N_119printStackTraceImplERKNS1_7OptionsEPNS_14StackTraceSinkE.constprop.357","s+":"215"},{"a":"55C16D675B69","b":"55C16980D000","o":"3E68B69","s":"_ZN5mongo15printStackTraceEv","s+":"29"},{"a":"55C16D66E3D6","b":"55C16980D000","o":"3E613D6","s":"_ZN5mongo29reportOutOfMemoryErrorAndExitEv","s+":"76"},{"a":"55C16D659991","b":"55C16980D000","o":"3E4C991","s":"_ZN5mongo12mongoReallocEPvm","s+":"21"},{"a":"55C16AD3491B","b":"55C16980D000","o":"152791B","s":"_ZN5mongo15BasicBufBuilderINS_21SharedBufferAllocatorEE15grow_reallocateEi","s+":"6B"},{"a":"55C16AD53C11","b":"55C16980D000","o":"1546C11","s":"_ZN5mongo3rpc17OpMsgReplyBuilder12reserveBytesEm","s+":"51"},{"a":"55C16AD6ABC7","b":"55C16980D000","o":"155DBC7","s":"_ZN5mongo12_GLOBAL__N_114RunCommandImpl3runEv","s+":"F7"},{"a":"55C16AD6CCAE","b":"55C16980D000","o":"155FCAE","s":"_ZN5mongo12_GLOBAL__N_119ExecCommandDatabase12_commandExecEv","s+":"1CE"},{"a":"55C16AD75840","b":"55C16980D000","o":"1568840","s":"_ZZN5mongo12_GLOBAL__N_114executeCommandESt10shared_ptrINS0_13HandleRequest16ExecutionContextEEENUlvE0_clEv","s+":"450"},{"a":"55C16AD77A30","b":"55C16980D000","o":"156AA30","s":"_ZZN5mongo15unique_functionIFvPNS_14future_details15SharedStateBaseEEE8makeImplIZNS1_10FutureImplINS1_8FakeVoidEE16makeContinuationIvZZNOS9_4thenIZNS_12_GLOBAL__N_114executeCommandESt10shared_ptrINSC_13HandleRequest16ExecutionContextEEEUlvE0_EEDaOT_ENKUlvE1_clEvEUlPNS1_15SharedStateImplIS8_EESN_E_EENS7_ISI_EEOT0_EUlS3_E_EEDaSJ_EN12SpecificImpl4callEOS3_","s+":"80"},{"a":"55C16AD32437","b":"55C16980D000","o":"1525437","s":"_ZN5mongo14future_details15SharedStateBase20transitionToFinishedEv","s+":"147"},{"a":"55C16AD7BDF2","b":"55C16980D000","o":"156EDF2","s":"_ZN5mongo14future_details10FutureImplINS0_8FakeVoidEE11generalImplIZNOS3_17propagateResultToEPNS0_15SharedStateImplIS2_EEEUlOS2_E_ZNOS3_17propagateResultToES7_EUlONS_6StatusEE0_ZNOS3_17propagateResultToES7_EUlvE1_EEDaOT_OT0_OT1_","s+":"152"},{"a":"55C16AD6F2BC","b":"55C16980D000","o":"15622BC","s":"_ZZN5mongo15unique_functionIFvPNS_14future_details15SharedStateBaseEEE8makeImplIZNS1_10FutureImplINS1_8FakeVoidEE16makeContinuationIvZZNOS9_4thenIZNS_12_GLOBAL__N_114executeCommandESt10shared_ptrINSC_13HandleRequest16ExecutionContextEEEUlvE_EEDaOT_ENKUlvE1_clEvEUlPNS1_15SharedStateImplIS8_EESN_E_EENS7_ISI_EEOT0_EUlS3_E_EEDaSJ_EN12SpecificImpl4callEOS3_","s+":"AC"},{"a":"55C16AD32437","b":"55C16980D000","o":"1525437","s":"_ZN5mongo14future_details15SharedStateBase20transitionToFinishedEv","s+":"147"},{"a":"55C16AD7622A","b":"55C16980D000","o":"156922A","s":"_ZN5mongo12_GLOBAL__N_114executeCommandESt10shared_ptrINS0_13HandleRequest16ExecutionContextEE","s+":"22A"},{"a":"55C16AD76C5E","b":"55C16980D000","o":"1569C5E","s":"_ZN5mongo12_GLOBAL__N_116receivedCommandsESt10shared_ptrINS0_13HandleRequest16ExecutionContextEE","s+":"1BE"},{"a":"55C16AD77976","b":"55C16980D000","o":"156A976","s":"_ZN5mongo12_GLOBAL__N_115CommandOpRunner3runEv","s+":"36"},{"a":"55C16AD71CA7","b":"55C16980D000","o":"1564CA7","s":"_ZN5mongo23ServiceEntryPointCommon13handleRequestEPNS_16OperationContextERKNS_7MessageESt10unique_ptrIKNS0_5HooksESt14default_deleteIS8_EE","s+":"307"},{"a":"55C16AD61B3F","b":"55C16980D000","o":"1554B3F","s":"_ZN5mongo23ServiceEntryPointMongod13handleRequestEPNS_16OperationContextERKNS_7MessageE","s+":"4F"},{"a":"55C16ADB9EF7","b":"55C16980D000","o":"15ACEF7","s":"_ZN5mongo9transport19ServiceStateMachine4Impl14processMessageEv","s+":"127"},{"a":"55C16ADBA227","b":"55C16980D000","o":"15AD227","s":"_ZZNO5mongo14future_details10FutureImplINS0_8FakeVoidEE4thenIZNS_9transport19ServiceStateMachine4Impl12startNewLoopERKNS_6StatusEEUlvE0_EEDaOT_ENKUlOS2_E_clESE_.isra.718","s+":"27"},{"a":"55C16ADBCB58","b":"55C16980D000","o":"15AFB58","s":"_ZN5mongo9transport19ServiceStateMachine4Impl12startNewLoopERKNS_6StatusE","s+":"1A8"},{"a":"55C16ADBD05F","b":"55C16980D000","o":"15B005F","s":"_ZZN5mongo15unique_functionIFvNS_6StatusEEE8makeImplIZNS_9transport19ServiceStateMachine4Impl15scheduleNewLoopES1_EUlS1_E_EEDaOT_EN12SpecificImpl4callEOS1_","s+":"7F"},{"a":"55C16CE38DA1","b":"55C16980D000","o":"362BDA1","s":"_ZZN5mongo15unique_functionIFvNS_6StatusEEE8makeImplIZNS_9transport26ServiceExecutorSynchronous18runOnDataAvailableERKSt10shared_ptrINS5_7SessionEES3_EUlS1_E_EEDaOT_EN12SpecificImpl4callEOS1_","s+":"41"},{"a":"55C16B485B83","b":"55C16980D000","o":"1C78B83","s":"_ZZN5mongo15unique_functionIFvvEE8makeImplIZNS_9transport15ServiceExecutor8scheduleENS0_IFvNS_6StatusEEEEEUlvE_EEDaOT_EN12SpecificImpl4callEv","s+":"33"},{"a":"55C16CE38F5B","b":"55C16980D000","o":"362BF5B","s":"_ZZN5mongo15unique_functionIFvvEE8makeImplIZNS_9transport26ServiceExecutorSynchronous12scheduleTaskES2_NS4_15ServiceExecutor13ScheduleFlagsEEUlvE0_EEDaOT_EN12SpecificImpl4callEv","s+":"BB"},{"a":"55C16CE3CE0C","b":"55C16980D000","o":"362FE0C","s":"_ZZN5mongo15unique_functionIFvvEE8makeImplIZNS_25launchServiceWorkerThreadES2_EUlvE2_EEDaOT_EN12SpecificImpl4callEv","s+":"5C"},{"a":"55C16CE3CE7C","b":"55C16980D000","o":"362FE7C","s":"_ZN5mongo12_GLOBAL__N_17runFuncEPv","s+":"1C"},{"a":"7F9B9F94CEA5","b":"7F9B9F945000","o":"7EA5","s":"start_thread","s+":"C5"},{"a":"7F9B9F675B0D","b":"7F9B9F577000","o":"FEB0D","s":"clone","s+":"6D"}],"processInfo":{"mongodbVersion":"5.0.5","gitVersion":"d65fd89df3fc039b5c55933c0f71d647a54510ae","compiledModules":[],"uname":{"sysname":"Linux","release":"3.10.0-1160.45.1.el7.x86_64","version":"#1 SMP Wed Oct 13 17:20:51 UTC 2021","machine":"x86_64"},"somap":[{"b":"55C16980D000","elfType":3,"buildId":"BFFEFC1C655BB329C72D082A0F159A3CE5FBF49F"},{"b":"7F9B9F945000","path":"/lib64/libpthread.so.0","elfType":3,"buildId":"E10CC8F2B932FC3DAEDA22F8DAC5EBB969524E5B"},{"b":"7F9B9F577000","path":"/lib64/libc.so.6","elfType":3,"buildId":"8DA9707D518E88179B1B2903CD846C82102D84C1"}]}}}}

The ‘reportOutOfMemoryErrorAndExitEv’ message seems to indicate to me that this is some kind of memory issue, but as you see from the screenshot above more than enough should be available at this point. I also checked if the mongod process is being OOM killed, but this is not the case as can be seen in the /var/log/messages file:

Jan  7 01:35:42 vm001 systemd: Started MongoDB Database Server.
Jan  7 02:11:20 vm001 systemd: mongod.service: main process exited, code=exited, status=14/n/a
Jan  7 02:11:20 vm001 systemd: Unit mongod.service entered failed state.
Jan  7 02:11:20 vm001 systemd: mongod.service failed.

Previously, I also experienced the following errors:

{"t":{"$date":"2022-01-06T23:29:44.321+01:00"},"s":"I",  "c":"NETWORK",  "id":22943,   "ctx":"listener","msg":"Connection accepted","attr":{"remote":"128.142.58.50:40884","uuid":"433b7d36-d00f-4bde-988d-2c6725ccc646","connectionId":10408,"connectionCount":10354}}
{"t":{"$date":"2022-01-06T23:29:44.321+01:00"},"s":"E",  "c":"-",        "id":4850900, "ctx":"listener","msg":"pthread_create failed","attr":{"error":"Resource temporarily unavailable"}}
{"t":{"$date":"2022-01-06T23:29:44.321+01:00"},"s":"E",  "c":"-",        "id":22948,   "ctx":"listener","msg":"Thread creation failed","attr":{"error":"pthread_create failed"}}
{"t":{"$date":"2022-01-06T23:29:44.321+01:00"},"s":"W",  "c":"EXECUTOR", "id":22993,   "ctx":"listener","msg":"Unable to schedule a new loop for the service state machine","attr":{"error":{"code":1,"codeName":"InternalError","errmsg":"Failed to create service entry worker thread: pthread_create failed"}}}

I already tried increasing all the possible ulimits that may play a role. Here is the output of some relevant files/commands

1) Return-Limits of mongod process

[mongod #167766 -- limits]
Limit                     Soft Limit           Hard Limit           Units
Max cpu time              unlimited            unlimited            seconds
Max file size             unlimited            unlimited            bytes
Max data size             unlimited            unlimited            bytes
Max stack size            8388608              unlimited            bytes
Max core file size        0                    unlimited            bytes
Max resident set          unlimited            unlimited            bytes
Max processes             1048576              1048576              processes
Max open files            1048576              1048576              files
Max locked memory         unlimited            unlimited            bytes
Max address space         unlimited            unlimited            bytes
Max file locks            unlimited            unlimited            locks
Max pending signals       28400                28400                signals
Max msgqueue size         819200               819200               bytes
Max nice priority         0                    0
Max realtime priority     0                    0
Max realtime timeout      unlimited            unlimited            us

2) ulimit -a

core file size          (blocks, -c) 0
data seg size           (kbytes, -d) unlimited
scheduling priority             (-e) 0
file size               (blocks, -f) unlimited
pending signals                 (-i) 28400
max locked memory       (kbytes, -l) unlimited
max memory size         (kbytes, -m) unlimited
open files                      (-n) 1048576
pipe size            (512 bytes, -p) 8
POSIX message queues     (bytes, -q) 819200
real-time priority              (-r) 0
stack size              (kbytes, -s) unlimited
cpu time               (seconds, -t) unlimited
max user processes              (-u) 1048576
virtual memory          (kbytes, -v) unlimited
file locks                      (-x) unlimited

3) /etc/security/limits.conf

*		 	  soft		  nofile		 1048576
*			  hard		  nofile		 1048576
*			  soft		  nproc			 1048576
*			  hard		  nproc			 1048576
*			  soft		  fsize			 unlimited
*			  hard		  fsize			 unlimited
*			  soft		  cpu			 unlimited
*			  hard		  cpu			 unlimited
*			  soft		  rss			 unlimited
*			  hard		  rss			 unlimited
*			  soft		  memlock		 unlimited
*			  hard		  memlock		 unlimited
*			  soft		  stack			 unlimited
*			  hard		  stack			 unlimited
*			  soft		  as			 unlimited
*			  hard		  as			 unlimited

4) /lib/systemd/system/mongod.service

[Unit]
Description=MongoDB Database Server
Documentation=https://docs.mongodb.org/manual
After=network-online.target
Wants=network-online.target

[Service]
User=mongod
Group=mongod
Environment="OPTIONS=-f /etc/mongod.conf"
EnvironmentFile=-/etc/sysconfig/mongod
ExecStart=/usr/bin/mongod $OPTIONS
ExecStartPre=/usr/bin/mkdir -p /var/run/mongodb
ExecStartPre=/usr/bin/chown mongod:mongod /var/run/mongodb
ExecStartPre=/usr/bin/chmod 0755 /var/run/mongodb
PermissionsStartOnly=true
PIDFile=/var/run/mongodb/mongod.pid
Type=forking
# file size
LimitFSIZE=infinity
# cpu time
LimitCPU=infinity
# virtual memory size
LimitAS=infinity
# open files
LimitNOFILE=1048576
# processes/threads
LimitNPROC=1048576
# locked memory
LimitMEMLOCK=infinity
# total threads (user+kernel)
TasksMax=infinity
TasksAccounting=false
# Recommended limits for mongod as specified in
# https://docs.mongodb.com/manual/reference/ulimit/#recommended-ulimit-settings

[Install]
WantedBy=multi-user.target

5) Added 99-mongodb-nproc.conf in /etc/security/limits.d

* soft nproc 1048576
* hard nproc 1048576

6) /proc/sys/kernel/threads-max

100000

7) /proc/sys/kernel/pid_max

4194303

8) /etc/sysctl.conf

fs.file-max=2147483584
vm.swappiness=20
vm.max_map_count=262144
net.netfilter.nf_conntrack_max = 32768
net.core.somaxconn=1024
net.core.netdev_max_backlog=2000
net.ipv4.tcp_max_syn_backlog=2048
net.ipv4.tcp_tw_recycle=0
net.ipv4.tcp_tw_reuse=0
net.ipv4.tcp_orphan_retries=1
net.ipv4.tcp_fin_timeout=25
net.ipv4.tcp_max_orphans=8192
net.ipv4.ip_local_port_range=1024    65535

9) /etc/mongod.conf

# where to write logging data.
systemLog:
  destination: file
  logAppend: true
  path: /var/log/mongodb/mongod.log

# Where and how to store data.
storage:
  dbPath: /mnt/mongo
  journal:
    enabled: true
#  engine:
#  wiredTiger:

# how the process runs
processManagement:
  fork: true  # fork and run in background
  pidFilePath: /var/run/mongodb/mongod.pid  # location of pidfile
  timeZoneInfo: /usr/share/zoneinfo

# network interfaces
net:
  port: 27017
  bindIpAll: true

I am also aware of the net.maxIncomingConnections option in /etc/mongod.conf, but as the crash occurs well below the default value of 65536 connections, this does not seem to be issue.

As you have seen, I tried to increase all relevant limits to prevent these kind of crashes, but at this point I am not sure what else could go wrong. Is there anything I am missing? Any help is greatly appreciated!

Welcome to the MongoDB Community Forums @dataJuggler !

7,000 connections would be about 7GB of per-connection memory allocated, but I believe your calculation of overall memory usage isn’t considering several important consumers of RAM:

  • The WiredTiger cache is 50% of (RAM - 1GB) by default (so 3.5GB of 8GB, or 3GB as your screenshots seem to indicate 7GB total RAM).

  • You should leave some RAM free for filesystem cache (which is useful for data and indexes not currently in the WiredTiger cache).

  • There may be temporary memory allocations for other in-memory processing (aggregations, in-memory sorts, etc).

  • The O/S needs some RAM for the kernel and any other applications that are running.

You could use the Atlas Connection Limits for Cluster Tiers as a general guide on what might be reasonable. For example, the M30 cluster tier has 8GB of RAM with 2 vCPUs and a limit of 3,000 connections.

Operational outcomes will be dependent on your workload, but 7,000 connections sounds far too ambitious for 8GB of total RAM. I would test with representative workload and ideally tune to the point where you do not have to rely on swap. Swap can be useful to help mitigate occasionally running low on memory, but performance will suffer if there is heavy reliance on swapping to disk.

The ulimit settings in the VM look reasonable. What is the host VM software? Have you checked the ulimit and logs for the host?

Regards,
Stennie

Hi @Stennie_X,

thanks for the answer and the explanation of the memory load to expect. Nonetheless, as I have stated, the crash already occurs for ~4000 connections with plenty of memory that is still available (3GB). The VM is running with OpenStack using the KVM hypervisor. At this point, I can’t say anything about the software of the underlying host (which I don’t have access to) or ulimits of host, but I can try to find out if you think this is relevant. Please let me know if there is anything else I could do to track this down.

Cheers
