You can associate custom metadata with each user of your App. For example, you might store a user's preferred language, date of birth, or any other information that you want to associate with the user.

You can source the metadata for a user from two sources:

  • A collection in MongoDB Atlas that stores custom user data. You can associate each user with a document in the collection by their user ID. You can store arbitrary data in each document.

  • An authentication provider. If the provider uses JSON Web Tokens, such as Google, Facebook, or a custom provider, you can define metadata fields in the provider configuration that associate data from the user's JWT with their user account.

You can store arbitrary data about your application users in a MongoDB collection. Your App maps each user to a document in the collection by querying a specific field for the user's ID. When a user authenticates, your App looks up the user's data and includes it in their access token.

Consider a user with the ID "63ed2dbe5960df2af7fd216e". If your custom user data collection was set up to store the user's ID in the userId field, the user would map to the following document:

{
"_id": "63ed2e4fb7f367c92578e526",
"user_id": "63ed2dbe5960df2af7fd216e",
"preferences": {
"preferDarkMode": true
},
"dateOfBirth": "1989-03-11T00:00:00.000Z"
}

When you use custom user data, keep the following things in mind:

  • Store One Document Per User: Documents that contain user data must include the user's ID in a specific field. If multiple documents specify the same user's ID, App Services only exposes the data from the document that was inserted first.

  • Keep Custom User Data Small: The user's full custom user document is included in their access token. In general, aim to keep custom user data documents small (say, less than 16KB). Other services might limit the HTTP header size, which means that larger custom user data objects can cause integration issues.

  • Custom Data May Be Stale: A user's custom data is sourced from a MongoDB collection but is stored in and read from a user's authentication access token. If a user has a valid access token when the underlying document changes, their custom data in that session does not update until they refresh their access token or re-authenticate.

You are responsible for managing documents in the custom user data collection. Depending on your use case, you may:

  • Automatically create a document for each user when they register for your application using a user creation function. This function runs before the user is issued an access token, so the data you add will be in the access token on their first login.

  • Use an authentication trigger to update a user's custom data when they register or log in and to delete their data if their account is deleted. Triggers run asynchronously and may finish after the user's access token is created.

  • Use a scheduled trigger to periodically update or delete custom user data.

  • Manually create, update, and delete documents in the collection using standard CRUD operations from a Function, an Atlas Device SDK, a MongoDB driver, or MongoDB Compass.

If your App's custom user data includes personal or private user information, you should restrict access to the custom user data collection. Consider using one of the following permission models to restrict read and write access to privileged users only:

  • A user may read or write their own custom user data document. Deny read and write access to all other documents.

    Example

    The following collection configuration has one role that grants a user read and write access to a document if and only if their ID is contained in the document's user_id field.

    A custom user data collection configuration
    {
    "database": "<Database Name>",
    "collection": "<Collection Name>",
    "roles": [
    {
    "name": "ThisUser",
    "apply_when": { "user_id": "%%user.id%%" },
    "insert": false,
    "read": true,
    "write": true,
    "search": false,
    "delete": false
    }
    ],
    "filters": []
    }
  • No user may read or write any custom user data documents. Instead, use a system function to manage custom user data on behalf of users.

You can define a Function that runs every time a new user successfully registers but before their new user account is created. If the function throws or otherwise errors, the user account creation fails. This lets you ensure that users always have custom data associated with them once created.

The function receives a user metadata object as its only argument. You can use this to create a new custom user data document for the user.

exports = async function onUserCreation(user) {
const customUserDataCollection = context.services
.get("mongodb-atlas")
.db("myapp")
.collection("users");
try {
await customUserDataCollection.insertOne({
// Save the user's account ID to your configured user_id_field
user_account_id: user.id,
// Store any other user data you want
favorite_color: "blue",
});
} catch (e) {
console.error(`Failed to create custom user data document for user:${user.id}`);
throw e
}
}

Tip

Once you've configured a user creation function, App Services prevents you from deleting the function. If you want to delete the function, first change your custom user data configuration to use a different user creation function.

You can configure and enable custom user data in the App Services Admin UI.

1

Click App Users in the left navigation menu. Then, select the User Settings tab and find the Custom User Data section.

2

Click the Enable Custom User Data toggle to set it to On.

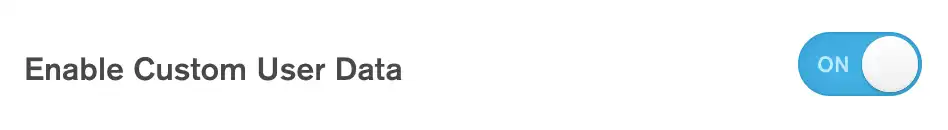

The toggle button to enable custom user data in the App Services UI, set to On.
click to enlarge
3

You must store the custom data for your application's users in a single collection of a linked MongoDB Atlas cluster. To configure your application to read user data from this collection, you need to specify the following values:

  • Cluster Name: The name of a linked MongoDB cluster that contains the custom user data collection.

  • Database Name: The name of the MongoDB database that contains the custom user data collection.

  • Collection Name: The name of the MongoDB collection that contains custom user data.

Input boxes for the collection and user id field in the App Services UI.
click to enlarge
4

Every document in the custom user data collection has a field that maps it to a specific application user. The field must be of type ObjectID or a string type that represents that ObjectID. This field must be present in every document that maps to a user.

Specify the name of the field that contains each user's ID in the User ID Field input.

Note

If two documents contain the same user ID, one stored as a string and the other as an ObjectID, App Services maps the document with the string type to the user.

5

If you want to use a user creation Function, define it in the inline editor or reference an existing function by name.

6

Once you have configured the custom user data collection, you can make custom user data available to client applications by deploying your application. To deploy a draft application from the App Services UI:

  1. Click Deploy in the left navigation menu.

  2. Find the draft in the deployment history table and then click Review & Deploy Changes.

  3. Review the diff of changes and then click Deploy.

Once the application successfully deploys, App Services begins to associate custom data with users. When a user logs in, App Services automatically queries the custom user data collection for a document where the specified User ID Field contains the user's ID. If a document matches, App Services exposes the data in the document in the custom_data field of that user's user object.

1

To define custom user data with appservices, you need a local copy of your application's configuration files.

To pull a local copy of the latest version of your app, run the following:

appservices pull --remote="<Your App ID>"

Tip

You can also download a copy of your application's configuration files from the Deploy > Export App screen in the App Services UI.

2

You must store the custom data for your application's users in a single collection of a linked Atlas cluster. Every document in the collection should include a specific field that contains the user ID of the App Services user that it describes.

To configure your application to read user data from this collection, define a custom user data configuration document in the /auth/custom_user_data.json:

/auth/custom_user_data.json
{
"enabled": <Boolean>,
"mongo_service_name": "<MongoDB Data Source Name>",
"database_name": "<Database Name>",
"collection_name": "<Collection Name>",
"user_id_field": "<User ID Field Name>",
"on_user_creation_function_name": "<Function Name>"
}
3

Once you've configured custom user data, you can push the updated config to your remote app. App Services CLI immediately deploys the update on push.

appservices push --remote="<Your App ID>"

For code examples that demonstrate how to access and update custom user data from the client application, see the documentation for the Atlas Device SDKs:

Atlas App Services can read user metadata from authentication providers. Then, App Services exposes each user's data in a field of their user object. For example, you might want to access a user's name, email, birthday, or gender.

You can configure App Services to request metadata with the access token when users log in. You can access that data from the logged-in user's object with a client SDK.

You can define the metadata to request when you configure authentication providers. Specify optional metadata fields that you want to access through the user's account. These metadata fields vary depending on provider.

Provider
Metadata fields
Facebook
  • name

  • first_name

  • last_name

  • picture

  • gender

  • birthday

  • min_age

  • max_age

  • email

Google
  • name

  • first_name

  • last_name

  • picture

  • email

Custom JWT
Any field in the JWT as specified by the Custom JWT provider's metadata fields configuration.

Important

Avoid Stale Authentication Provider Metadata

If a user's metadata is updated after the access token is issued, requests using the previously created access token will not have the newly updated metadata. Their user metadata will update when they refresh their access token or re-authenticate.

Note

Security and Authentication Provider Metadata

Authentication provider metadata can be externally-defined by clients and external authentication providers and should be regarded with caution. You should not rely solely on authentication provider metadata for security-related decisions, such as using this metadata in rule expressions for data access permissions.

1

You can configure and enable user metadata in the App Services UI. To get to the configuration page:

  • Click Authentication in the left navigation menu.

  • Select the Authentication Providers tab.

  • Press the EDIT button for the provider whose metadata you want to configure.

2

Google or Facebook

Select the checkboxes next to the metadata fields you want to enable.

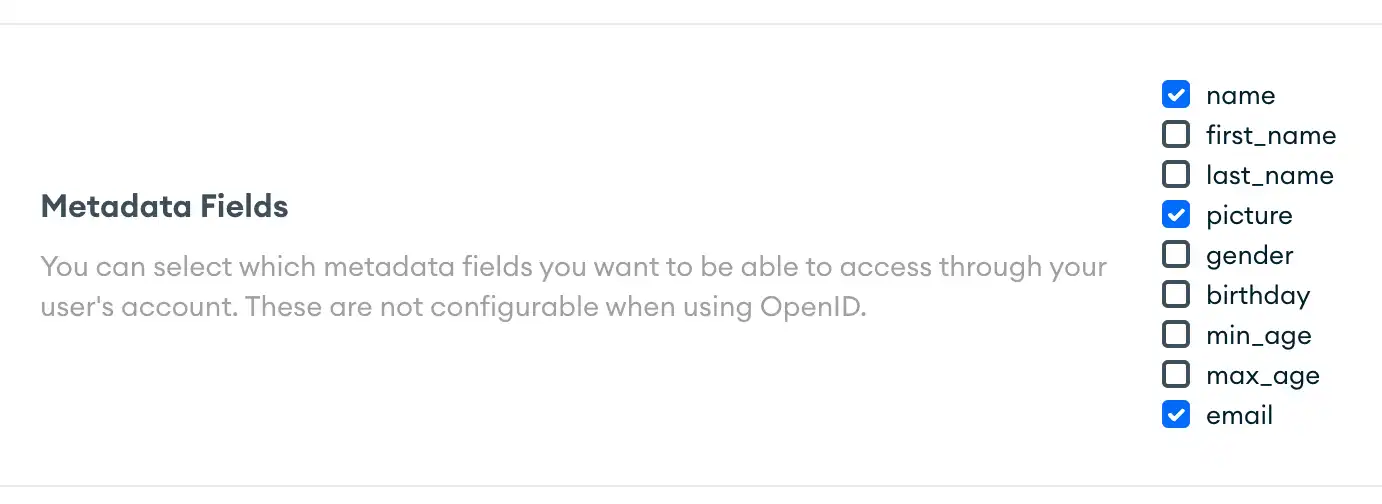

The checkboxes to enable user metadata fields in the App Services UI
click to enlarge

Custom JWT Authentication

You can specify the metadata fields that your identity provider supports. After you press the Add Field button, define:

  • The path

  • The field name

  • Whether the field is optional or required

For more details, see: JWT metadata fields.

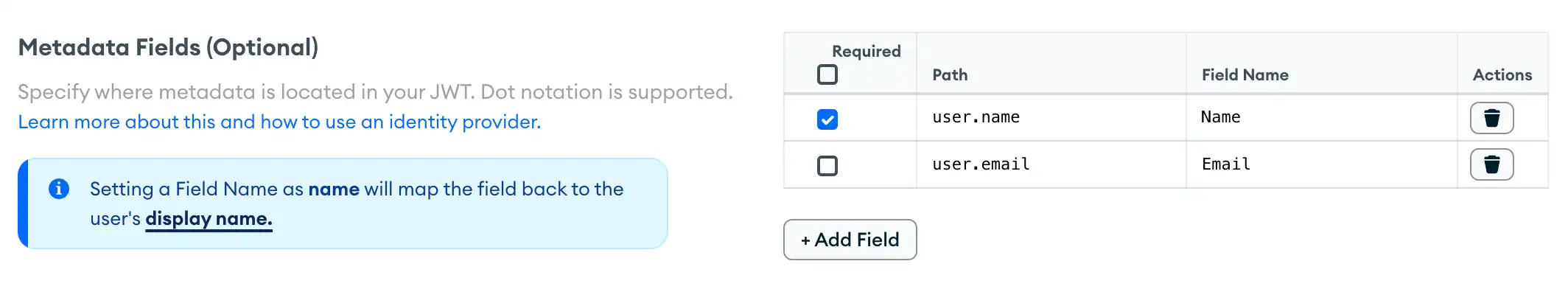

Add metadata required/optional, path, and name in the App Services UI
click to enlarge

After you configure the metadata you want to access, press the Save Draft button.

3

After you update the metadata configuration, you must deploy your application. To deploy a draft application from the App Services UI:

  1. Click Deploy in the left navigation menu.

  2. Find the draft in the deployment history table and then click Review & Deploy Changes.

  3. Review the diff of changes and then click Deploy.

Once the application successfully deploys, App Services begins to associate metadata with users. When a user logs in, App Services requests user permission to access the requested metadata. If the user approves, App Services exposes the data in that user's user object.

1

To update your app with appservices, you need a local copy of its configuration files.

To pull a local copy of the latest version of your app, run the following:

appservices pull --remote="<Your App ID>"

Tip

You can also download a copy of your application's configuration files from the App Services UI. Go to the Deploy > Export App screen from the App Dashboard.

2

You can find authentication provider metadata_fields for your app in /auth/providers.json. Update this array to request user metadata from the authentication provider.

Google or Facebook

This array resembles:

/auth/providers.json
{ ...other config details...
"metadata_fields": [
{
"required": false,
"name": "name"
},
{
"required": false,
"name": "gender"
}
]
}

Custom JWT authentication

The metadata_fields array has an additional property, field_name. In custom JWT authentication, name represents the path to the field. The field_name represents the name of the field.

/auth/providers.json
{ ...other config details...
"metadata_fields": [
{
"required": true,
"name": "user.name",
"field_name": "name"
},
{
"required": false,
"name": "user.favoriteColor",
"field_name": "favoriteColor"
}
]
}
3

Once you've configured custom user data, you can push the updated config to your remote app. App Services CLI immediately deploys the update on push.

appservices push --remote="<Your App ID>"
1

Call the admin user authentication endpoint with your MongoDB Atlas API key pair:

curl -X POST \
https://services.cloud.mongodb.com/api/admin/v3.0/auth/providers/mongodb-cloud/login \
-H 'Content-Type: application/json' \
-H 'Accept: application/json' \
-d '{
"username": "<Public API Key>",
"apiKey": "<Private API Key>"
}'

If authentication succeeds, the response body contains a JSON object with an access_token value:

{
"access_token": "<access_token>",
"refresh_token": "<refresh_token>",
"user_id": "<user_id>",
"device_id": "<device_id>"
}

The access_token grants access to the App Services Admin API. You must include it as a Bearer token in the Authorization header for all Admin API requests.

2

Send a request to the Update an authentication provider endpoint. In the request body, define metadata_fields for the provider.

Make sure to include your Admin API access_token, the groupId of the Atlas project containing your App, the App's internal appId hex string, and the _id value of the authentication provider:

curl --request PATCH 'https://services.cloud.mongodb.com/api/admin/v3.0/groups/{groupId}/apps/{appId}/auth_providers/{providerId}' \
--header 'Authorization: Bearer <access_token>' \
--header 'Content-Type: application/json' \
--data '{
"_id": "<Provider ID>",
"name": "oauth2-facebook",
"type": "oauth2-facebook",
"redirect_uris": ["https://example.com/"],
"config": {
"clientId": "<Facebook Client ID>"
},
"secret_config": {
"clientSecret": "<Facebook Client Secret Name>"
},
"metadata_fields": [
{ "required": false, "name": "name" },
{ "required": true, "name": "first_name" },
{ "required": true, "name": "last_name" },
{ "required": false, "name": "picture" },
{ "required": false, "name": "gender" },
{ "required": false, "name": "birthday" },
{ "required": false, "name": "min_age" },
{ "required": false, "name": "max_age" },
{ "required": false, "name": "email" }
],
"disabled": false
}'
curl --request PATCH 'https://services.cloud.mongodb.com/api/admin/v3.0/groups/{groupId}/apps/{appId}/auth_providers/{providerId}' \
--header 'Authorization: Bearer <access_token>' \
--header 'Content-Type: application/json' \
--data '{
"_id": "<Provider ID>",
"name": "oauth2-google",
"type": "oauth2-google",
"redirect_uris": ["https://example.com/"],
"config": {
"clientId": "<Google Client ID>"
},
"secret_config": {
"clientSecret": "<Google Client Secret Name>"
},
"metadata_fields": [
{ "required": false, "name": "name" },
{ "required": true, "name": "first_name" },
{ "required": true, "name": "last_name" },
{ "required": false, "name": "picture" },
{ "required": false, "name": "gender" },
{ "required": false, "name": "birthday" },
{ "required": false, "name": "min_age" },
{ "required": false, "name": "max_age" },
{ "required": false, "name": "email" }
],
"disabled": false
}'
curl --request PATCH 'https://services.cloud.mongodb.com/api/admin/v3.0/groups/{groupId}/apps/{appId}/auth_providers/{providerId}' \
--header 'Authorization: Bearer <access_token>' \
--header 'Content-Type: application/json' \
--data '{
"_id": "<Provider ID>",
"name": "custom-token",
"type": "custom-token",
"metadata_fields": [
{
"required": true,
"name": "jwt.field.path",
"field_name": "metadataFieldName"
}
],
"config": {
"audience": [],
"requireAnyAudience": false,
"signingAlgorithm": "HS256",
"useJWKURI": false
},
"secret_config": {
"signingKeys": [
"<JWT Signing Key>"
]
},
"disabled": true
}'

If you successfully configure the provider's metadata fields, App Services returns a 204 response.

Note

Tips for Users with Multiple Linked Authentication Providers

  • To ensure the most up-to-date metadata, users should re-authenticate after switching to a different authentication provider. Failure to do so may result in outdated metadata reflected in the Users table in the UI's App Users page and for requests using authentication providers.

  • If a user switches between authentication providers, it may take up to 30 minutes for metadata to propagate. The request is always guaranteed to have the most up-to-date metadata associated with the authentication provider used.

For code examples that demonstrate how to access user metadata data from the client application, see the documentation for the Atlas Device SDKs:

Back

Create a User

Next

Read User Metadata
